Precision Display, Beyond Limits

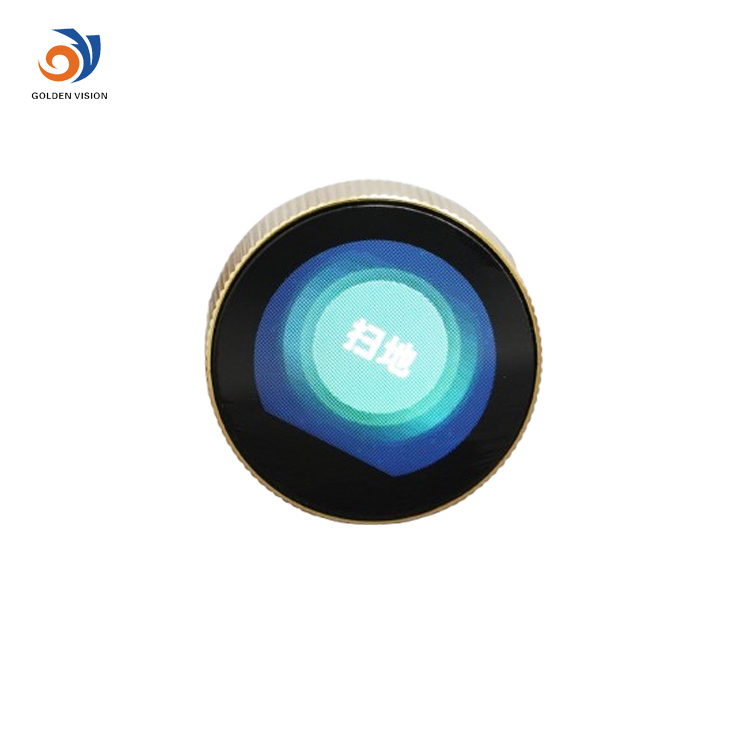

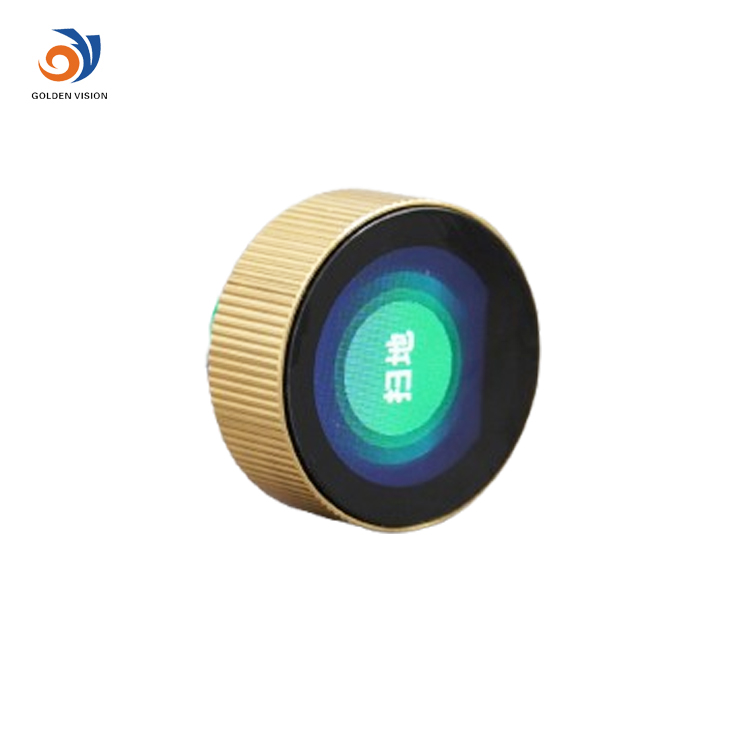

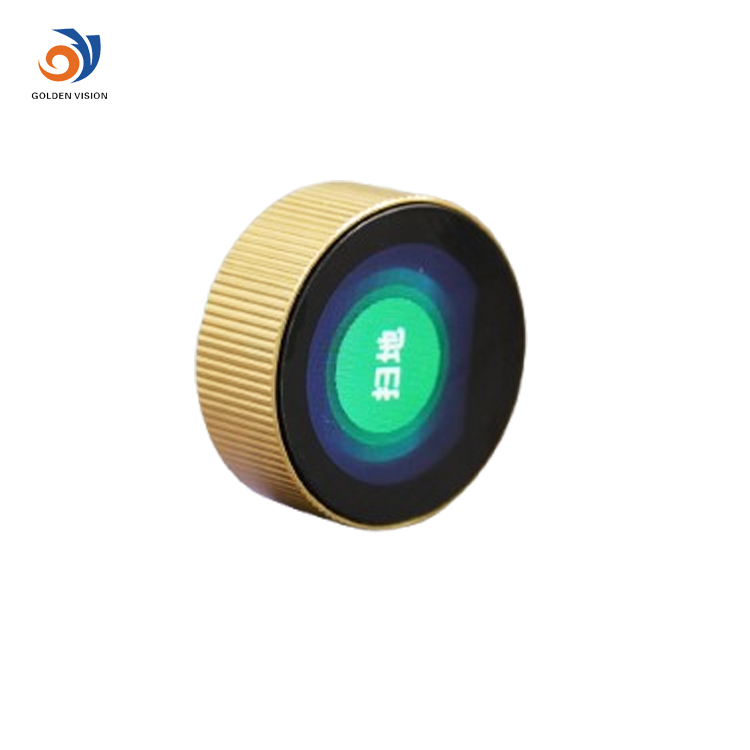

This innovative 0.99Inch semicircular display module integrates 128×115 RGB display, 360° rotary encoder, and tactile button in a compact 33.5mm diameter package. Featuring 350cd/m² brightness, 8MB flash storage, and RGB ambient lighting. Engineered for industrial reliability with -20℃~70℃ operation, ESD protection (±8KV air/±4KV contact), and 30,000-rotation lifespan. Ideal for space-constrained control interfaces in automotive, smart home, and industrial devices.
Item No :
0.99 Inch Semicircular Rotary ModuleOrder(MOQ) :
500 PiecesPayment :
TT TransferProduct Origin :
Anhui, ChinaSupplier Type :
ManufacturerLead Time :
About 20-25 days|
Parameter |
Data |
|
Screen display size |
0.99 inches |
|
Resolution |
128x115 (RGB) pixels |
|
Display size (A.A) |
24.36mmx21.89mm |
|
Backlight brightness |
350 CD/M2 |
|
Angle of view |
Full perspective |
|
Knob switch |
Built in encoding switch |
|
Key |
Built in touch button |
|
Power/communication interface |
FPC0.5-4P socket |
|
Atmosphere lights |
RGB Phantom Lantern |
Main Features and Benefits
1. Three in one interactive design
360 ° gearless rotary encoder (torque 200 ± 100gf · cm), supporting precise numerical adjustment
6N touch button (with a lifespan of 30000 times), providing physical confirmation feedback
Semi circular 128 × 115 RGB display screen (24.36 × 21.89mm), information surround display
2. Intelligent environment integration

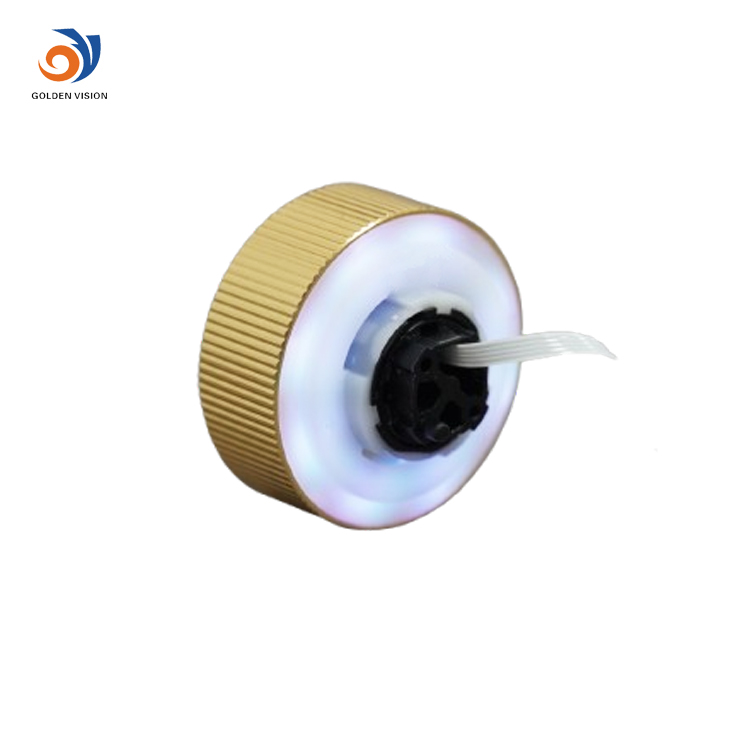

RGB iridescent ambient light, programmable display device status (such as temperature/battery level)
8MB onboard storage (expandable up to 32MB), storing custom icons/animations
Dual serial TTL support (3.3V/5V switching), directly connected to the main control system
3. Industrial grade miniaturization

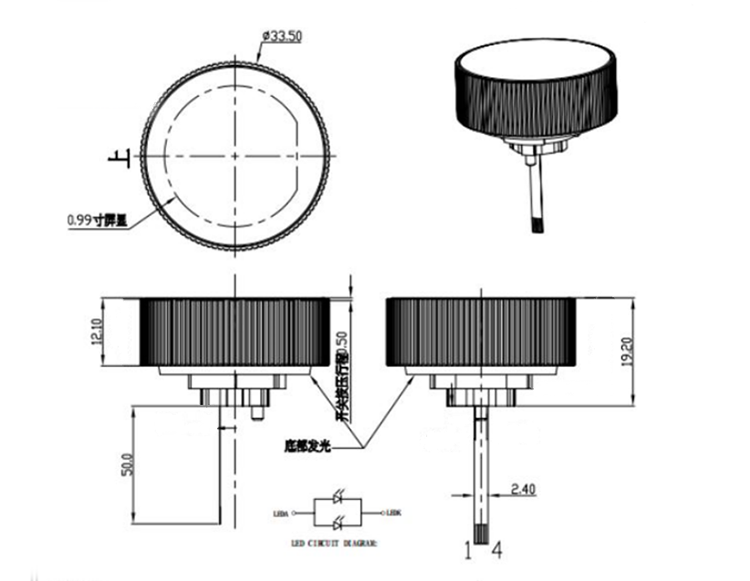

Ultra compact design (Φ 33.5 × 19.2mm, only 32g), saving 86% space
350cd/m ² high brightness, visible under strong light
ESD protection (± 8KV air/± 4KV contact), anti workshop interference
? Ultra low power architecture
5V power supply (4.5-5.5V range), standby current<1mA
The working current is only 200mA (backlight fully off)/450mA (fully on)
Support sleep mode, increase battery life by 5 times for battery devices
Application Scenarios

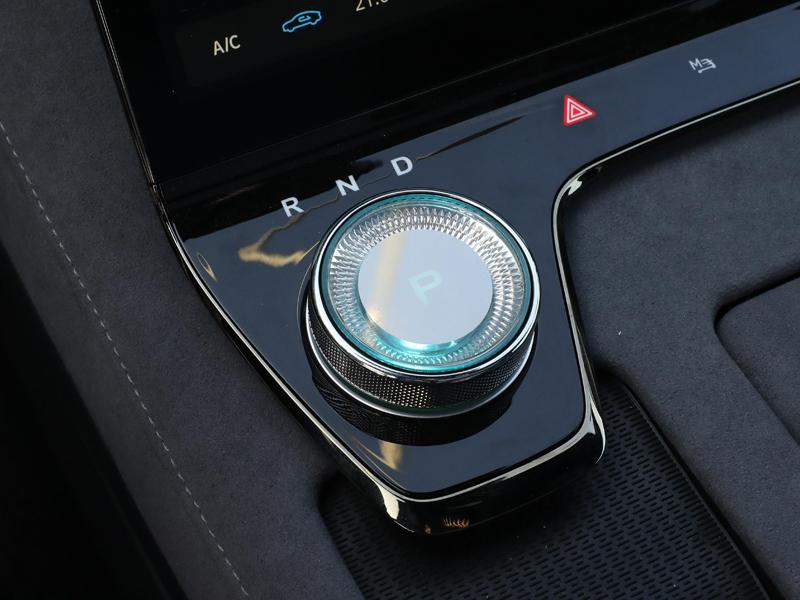

1. Intelligent cockpit: car air conditioning knob/volume control, knob+screen replaces traditional mechanical buttons

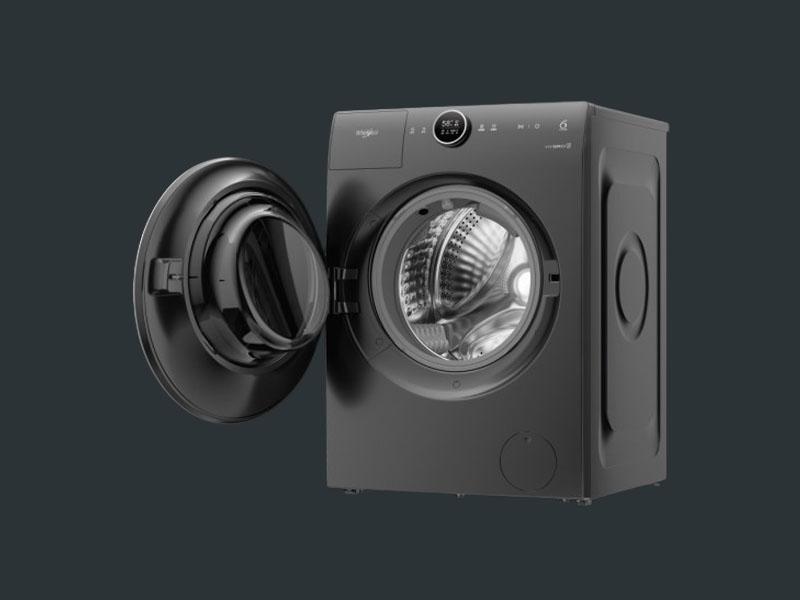

2. High end household appliances: smart oven/coffee machine control knob, RGB light ring visual temperature progress
3. Industrial instruments: pressure regulating valve/laser equipment controller, 360 ° stepless adjustment of precision parameters
4. Medical equipment: Dialysis machine flow control knob, touch pressure confirmation to prevent misoperation
5. Audio equipment: DJ mixing console/studio console, high-precision knob+visual feedback
Why choose Anhui Golden Vision Optoelectronics OEM LCD panel supplier?
1. Deep foundation and strength guarantee: We have been deeply involved in the LCD display field for 30 years and have accumulated rich experience in production, manufacturing, and sales. This not only means mature and stable processes, but also represents a profound understanding of market demand and the ability to continuously innovate.
2. Vertical integration and controllable quality: The core advantage of Golden Vision lies in its ability to self produce throughout the entire industry chain. We have achieved independent production of everything from the core LCD display screen to the critical PCBA (printed circuit board components). This deep vertical integration ensures full quality control from the source to the finished product, effectively ensuring product consistency and reliability
Significantly shorten delivery time and enhance supply chain resilience.
3. Business team, one-stop service: We have a strong team of professional engineers with full technical capabilities covering the entire process from low-level hardware design to high-level software development. Whether it's professional software and hardware engineers solving technical problems, UI design teams creating intuitive and easy-to-use user interfaces, or structural engineering teams ensuring product durability and perfect compatibility, JinShiShi can provide you with comprehensive, one-stop technical support and solutions from concept to mass production.
Anhui Golden Vision Optoelectronics, with 30 years of craftsmanship, full industry chain self-produced strength, and top cross disciplinary engineering team, is committed to becoming your most trusted display technology partner, helping your products stand out in the fierce market competition!
