Precision Display, Beyond Limits

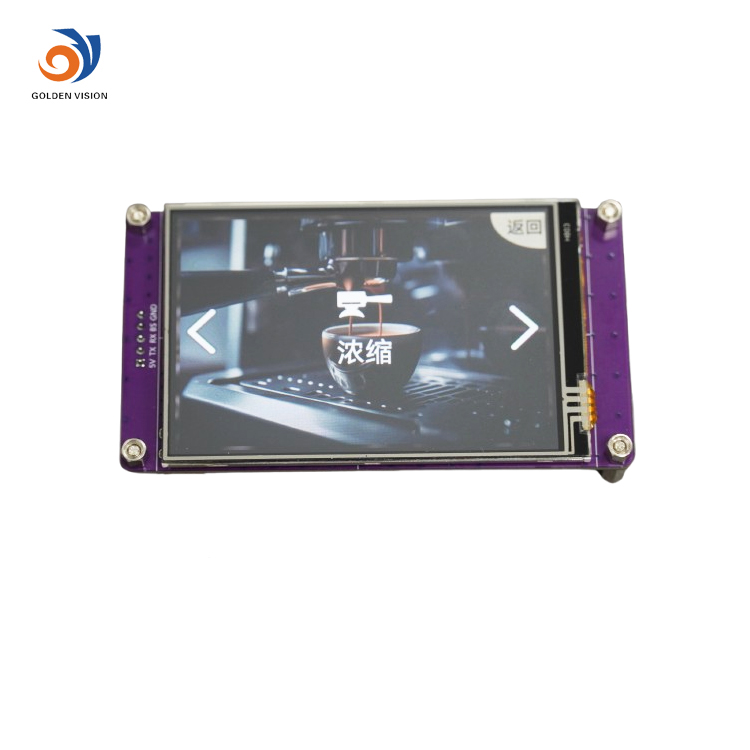

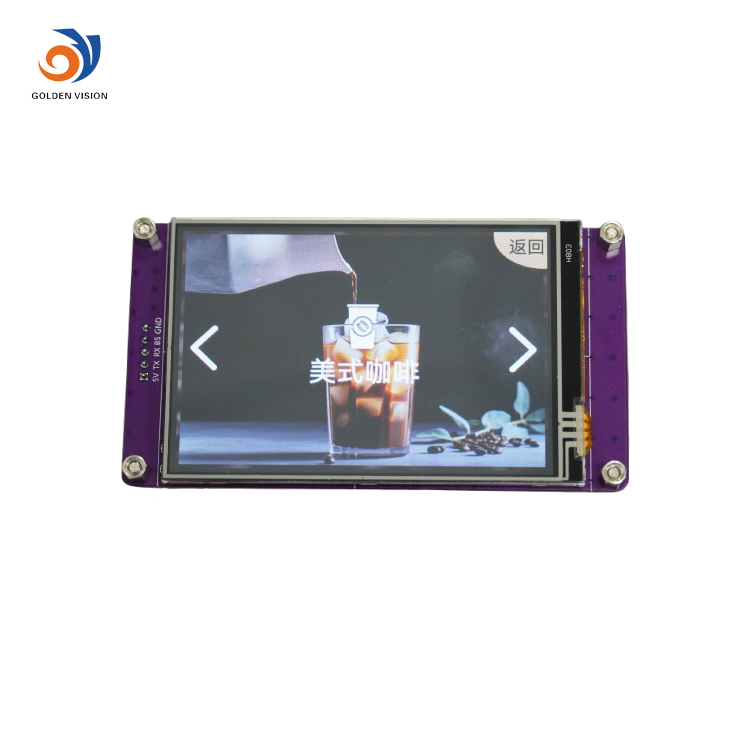

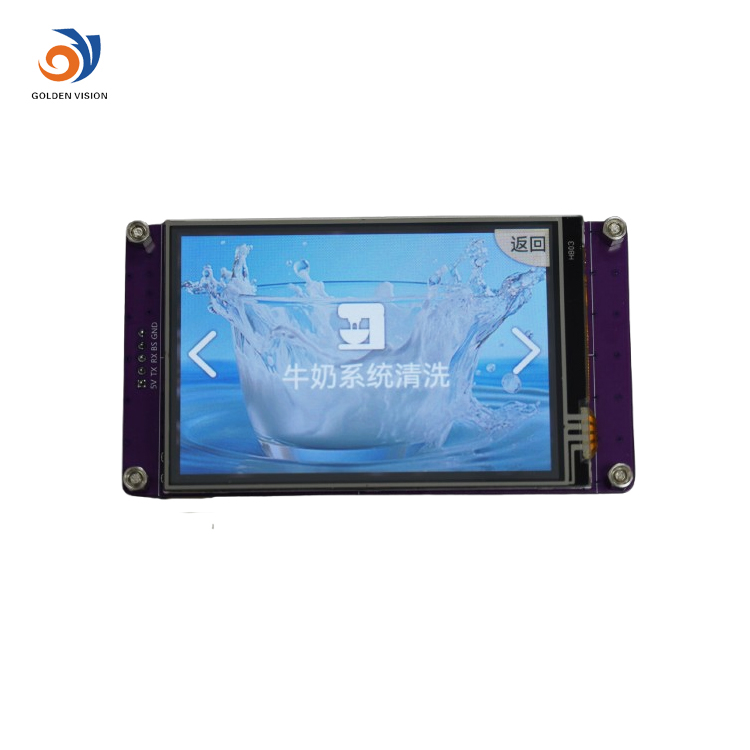

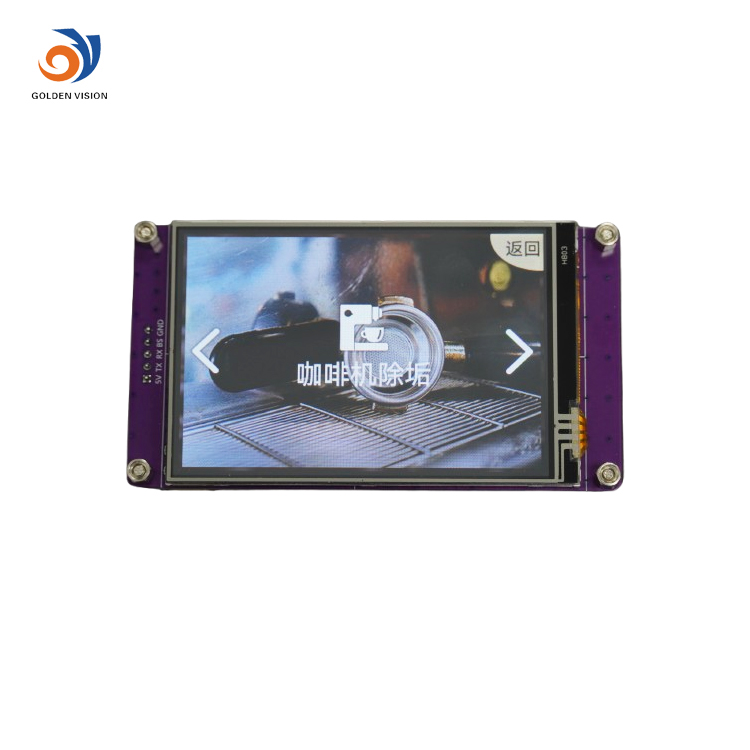

3.5 Inch 480×320 Resolution Serial TFT Display delivers 480×320 enhanced resolution with capacitive touch control and UART serial interface. Featuring 300cd/m² high brightness for outdoor visibility, industrial-grade reliability (-20℃~70℃ operation), and optimized 12 o'clock viewing angle. Compact design (100×55×11.5mm) with large active area (73.44×48.96mm), ideal for industrial HMI, portable devices, and interactive terminals.
Item No :
3.5 Inch Serial Port TFT DisplayOrder(MOQ) :
500 PiecesPayment :
TT TransferProduct Origin :
Anhui, ChinaSupplier Type :
ManufacturerLead Time :
About 20-25 days
|
Model |
3.5 Inch serial port screen |
|
Resolution |
480*320 |
|
Voltage |
5V |
|
Communication Method |
UART serial communication |
|
Screen Effective Display Area (AA) |
73.44mm*48.96mm |
|
Product Dimensions (length * width * height) |
100mm*55mm*11.5mm |
|
Operation Temperature |
-20～+70℃ |
|
Storage Temperature |
-30～+80℃ |
|
Display Type |
TN LCD screen |
|
Backlight Tube |
LED |
|
Brightness (cd/m ²) |
300 |
|
Perspective (L/R/U/D) |
12 o’clock |
|
Touch Type |
Capacitive Touch Screen |
Main Features and Benefits
1. Excellent visual experience
480 × 320 high-definition resolution (PPI 165), displaying 150% more content than conventional 320 × 240
300cd/m ² ultra-high brightness, with a 65% increase in visibility in strong light environments
12 o'clock directional perspective optimization, key information distortion free
2. Advanced touch performance
Capacitive touch screen, supporting multi touch (industry standard 10 points)
Response speed<3ms, accuracy ± 1mm
Surface scratch resistant coating (3H hardness), waterproof stain interference
3. Minimalist industrial integration
UART serial communication, plug and play, driver free development
5V single voltage power supply, compatible with various embedded systems
73.44 × 48.96mm ultra large effective display area, screen to body ratio>88%
4. Durability in harsh environments
Wide temperature range support (-20 ℃~70 ℃ working/-30 ℃~80 ℃ storage)
All metal shell+reinforced glass, resistant to impact and vibration
11.5mm ultra-thin with touch assembly, saving space
Application Scenarios
1. Industrial automation: CNC console/PLC programming terminal, large screen multi parameter display on the same screen
2. In car electronics: Commercial in car central control/diagnostic equipment, wide temperature support -20 ℃ cold start
3. Medical equipment: Portable monitor/testing equipment screen, capacitive touch support for medical glove operation
4. Intelligent retail: self-service cash register/ordering terminal, 300cd/m ² brightness suitable for strong light in shopping malls
5. Agricultural technology: Outdoor monitoring terminal/irrigation controller, IP65 protection (optional), dustproof and splash proof
Why choose Anhui Golden Vision Optoelectronics OEM LCD panel supplier?
1. Deep foundation and strength guarantee: We have been deeply involved in the LCD display field for 30 years and have accumulated rich experience in production, manufacturing, and sales. This not only means mature and stable processes, but also represents a profound understanding of market demand and the ability to continuously innovate.
2. Vertical integration and controllable quality: The core advantage of Golden Vision lies in its ability to self produce throughout the entire industry chain. We have achieved independent production of everything from the core LCD display screen to the critical PCBA (printed circuit board components). This deep vertical integration ensures full quality control from the source to the finished product, effectively ensuring product consistency and reliability
Significantly shorten delivery time and enhance supply chain resilience.
3. Business team, one-stop service: We have a strong team of professional engineers with full technical capabilities covering the entire process from low-level hardware design to high-level software development. Whether it's professional software and hardware engineers solving technical problems, UI design teams creating intuitive and easy-to-use user interfaces, or structural engineering teams ensuring product durability and perfect compatibility, JinShiShi can provide you with comprehensive, one-stop technical support and solutions from concept to mass production.
Anhui Golden Vision Optoelectronics, with 30 years of craftsmanship, full industry chain self-produced strength, and top cross disciplinary engineering team, is committed to becoming your most trusted display technology partner, helping your products stand out in the fierce market competition!
