Precision Display, Beyond Limits

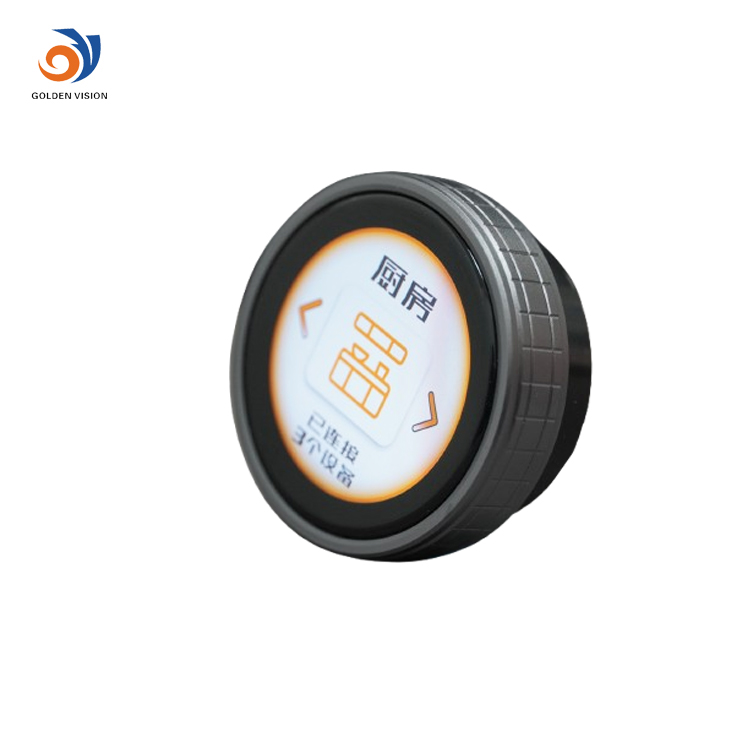

Golden Vision 1.53 inch circular display module, equipped with 360 × 360 high-definition resolution and 65K color display, integrated rotary encoder, silicone micro buttons, and 8MB storage (expandable to 32MB). Support FlyThings Lite IDE development, one click upgrade program via USB, wide temperature operation from -20 ℃ to 70 ℃, suitable for harsh scenarios such as industrial control and medical equipment.
Item No :
1.53 Inch Circular Display ModuleOrder(MOQ) :
500 PiecesPayment :
TT TransferProduct Origin :
Anhui, ChinaSupplier Type :
ManufacturerLead Time :
About 20-25 days|
Screen Display Size |
1.53 inches |
|
Resolution |
360x360 pixels |
|
Display Color |
65K |
|
Display Size (A.A) |
39.8mm(H)x39.8mm(V) |
|
Backlight Brightness |
250nits |
|
MCU |
FR800x |
|
Working Temperature |
-20℃~+70℃ |
|
Storage Temperature |
-30℃~+80℃ |
Main Features and Benefits
1. True circular high-definition display(1.53 inch circular display module)
360 × 360 resolution (PPI 235), 65K color depth, delicate image without jagged edges
39.8 × 39.8mm large effective display area, 25% larger visible area than conventional 1.5Inch screen
IPS full view technology, 178 ° no dead angle visibility
2. Industrial grade control core
FR800x high-performance MCU, real-time response knob operation
250 nits adaptive brightness, automatically optimized for strong/dark environments
5V power supply compatible, with power consumption 30% lower than similar products
3. Durability in harsh environments
-20 ℃~70 ℃ wide temperature certification (-30 ℃~80 ℃ storage)
Surface hardening treatment (3H hardness), scratch resistant and wear-resistant
Anti fingerprint coating, resistant to high-frequency operation
4. Knob interaction optimization
Customizable torque range (200-500gf · cm)
Support tactile feedback (optional vibration/sound prompts)
Circular UI Pre installed Library (Dashboard/Audio Spectrum/Medical Scale)
Application Scenarios
1. Industrial automation: CNC speed control 1.53 inch circular display module, 360 ° stepless adjustment+real-time parameter display
2. High end kitchen appliances: intelligent oven mode selector, stable operation in a high temperature environment of 70 ℃
3. Medical equipment: blood analyzer flow regulation, 1mm precision scale ring visualization
4. Professional audio: DJ mixing console equalizer knob, circular spectrum dynamic feedback
5. Automotive electronics: Car driving mode switch knob, -20 ℃ cold start instant response
Why choose Anhui Golden Vision Optoelectronics OEM LCD panel supplier?
1. Deep foundation and strength guarantee: We have been deeply involved in the LCD display field for 30 years and have accumulated rich experience in production, manufacturing, and sales. This not only means mature and stable processes, but also represents a profound understanding of market demand and the ability to continuously innovate.
2. Vertical integration and controllable quality: The core advantage of Golden Vision lies in its ability to self produce throughout the entire industry chain. We have achieved independent production of everything from the core LCD display screen to the critical PCBA (printed circuit board components). This deep vertical integration ensures full quality control from the source to the finished product, effectively ensuring product consistency and reliability
Significantly shorten delivery time and enhance supply chain resilience.
3. Business team, one-stop service: We have a strong team of professional engineers with full technical capabilities covering the entire process from low-level hardware design to high-level software development. Whether it's professional software and hardware engineers solving technical problems, UI design teams creating intuitive and easy-to-use user interfaces, or structural engineering teams ensuring product durability and perfect compatibility, JinShiShi can provide you with comprehensive, one-stop technical support and solutions from concept to mass production.
Anhui Golden Vision Optoelectronics, with 30 years of craftsmanship, full industry chain self-produced strength, and top cross disciplinary engineering team, is committed to becoming your most trusted display technology partner, helping your products stand out in the fierce market competition!
