Precision Display, Beyond Limits

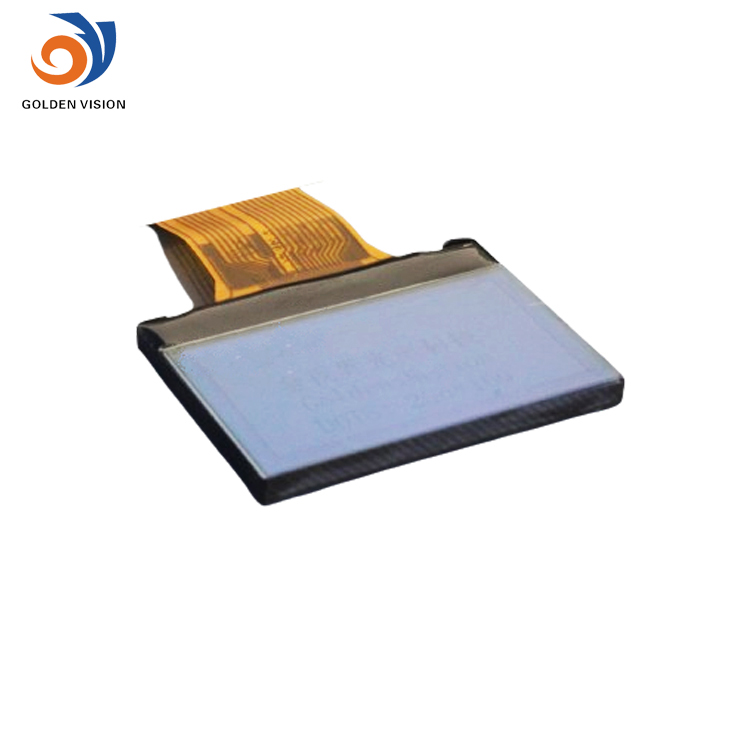

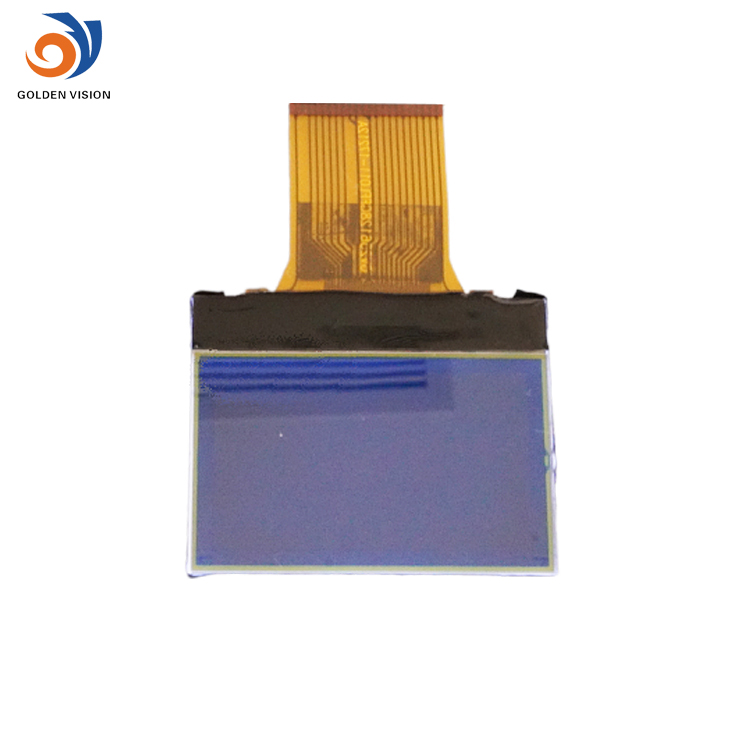

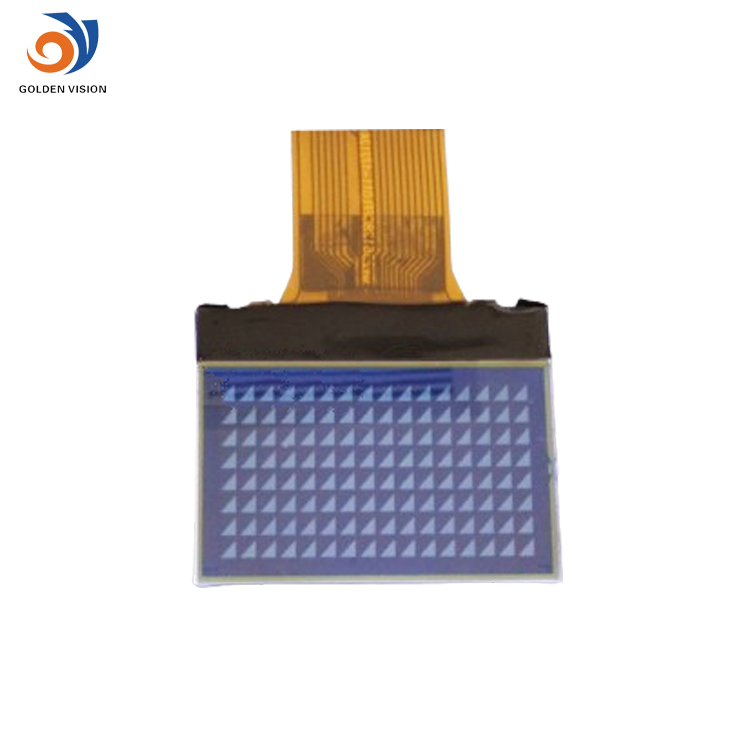

Precision-engineered for industrial instruments, this FSTN graphic display delivers high-resolution 256×128 graphics (44.145×25.265mm) with blue negative film. Featuring SPI interface, 3.0V low-power operation, and -20℃~60℃ thermal stability, it provides crisp data visualization for test equipment and control systems.
Item No :
256×128 FSTN Graphic DisplayOrder(MOQ) :
500 PiecesPayment :
TT TransferProduct Origin :
Anhui, ChinaSupplier Type :
ManufacturerLead Time :
About 20-25 days
|
Main Parameters |
|
|
Module number |
GV256128GFFL011-212A-17 |
|
Application |
Instrument |
|
Type |
COG |
|
LCD Type |
FSTN |
|
Resolution |
256*128 |
|
Dot pitch |
0.015*0.015 |
|
Active Area |
44.145*25.265 |
|
View angle |
6:00 |
|
Pixel Arrangement |
Graphic lattice |
|
Electrical Interface |
SPI |
|
Brightness |
200 |
|
Outline dimension |
51*40 |
|
Backlight |
LED |
|
Display mode |
Blue film ,negative |
|
Operate temperature |
-20℃～+60℃ F15 |
|
Storage temperature |
-30℃～+70℃ |
Main Features and Benefits
High-Resolution Clarity
0.015mm dot pitch enables detailed waveform/graph display(FSTN graphic display)
Industrial Environment Ready
-20℃~60℃ operation (F15 rating) withstands factory floor conditions
Low-Power SPI Integration
3.0V single supply + SPI interface reduces wiring complexity
Enhanced Contrast Visibility
Blue negative film delivers >8:1 contrast in direct light
Longevity Optimized
20,000-hour LED backlight with anti-static packaging
Recommend Products
Application Scenarios
✅ Test & Measurement(FSTN graphic display): Oscilloscope displays, multimeter interfaces
✅ Process Control: HMI panels for industrial automation
✅ Medical Devices: Patient monitor graphic readouts
✅ Portable Instruments: Field data logger screens
✅ Embedded Systems: Equipment diagnostic interfaces
Why choose Anhui Golden Vision Optoelectronics OEM LCD panel supplier?
1. Deep foundation and strength guarantee: We have been deeply involved in FSTN graphic display field for 30 years and have accumulated rich experience in production, manufacturing, and sales. This not only means mature and stable processes, but also represents a profound understanding of market demand and the ability to continuously innovate.
2. Vertical integration and controllable quality: The core advantage of Golden Vision lies in its ability to self produce throughout the entire industry chain. We have achieved independent production of everything from the core LCD display screen to the critical PCBA (printed circuit board components). This deep vertical integration ensures full quality control from the source to the finished product, effectively ensuring product consistency and reliability.Significantly shorten delivery time and enhance supply chain resilience.
3. Business team, one-stop service: We have a strong team of professional engineers with full technical capabilities covering the entire process from low-level hardware design to high-level software development. Whether it's professional software and hardware engineers solving technical problems, UI design teams creating intuitive and easy-to-use user interfaces, or structural engineering teams ensuring product durability and perfect compatibility, JinShiShi can provide you with comprehensive, one-stop technical support and solutions from concept to mass production.
Anhui Golden Vision Optoelectronics, with 30 years of craftsmanship, full industry chain self-produced strength, and top cross disciplinary engineering team, is committed to becoming your most trusted display technology partner, helping your products stand out in the fierce market competition!
Enterprise Services
1. Custom LCD Solutions
Golden Vision's 128×32 COG FSTN LCD module delivers crisp negative display for audio equipment. With ultra-compact size (57.5×22.58mm), FPC connector, and 3.0V low-voltage operation, it's engineered for seamless integration into speakers, amplifiers, and pro-audio interfaces.
Details
Precision-engineered for medical diagnostics, this medical VA display module delivers high-contrast negative display with 121×94mm active area. Featuring 12 o'clock viewing angle, FPC connectivity, and -10℃~60℃ operational stability, it meets critical requirements for blood analyzers, biosensors, and point-of-care testing devices.
Details
Engineered for smart metering systems, this 160×160 COG FSTN LCD delivers clear positive display with 61×61mm active area. Featuring ultra-wide temperature operation (-40℃~70℃), FPC interface, and 3.3V low-power design, it meets rigorous requirements for industrial/utility electricity meters.
Details
Engineered for commercial HVAC control panels, this VA negative LCD display delivers high-contrast 64×69.5mm display with true full viewing angle. Featuring FPC connectivity, 5.0V operation, and -20℃~70℃ thermal stability, it enables intuitive climate control in hotel management systems.
Details
Engineered for harsh vehicle environments, this automotive-grade COG VA LCD display delivers high-contrast 35.72×47.96mm negative display with 0.5 viewing angle optimization. Featuring automotive-grade temperature range (-40℃~85℃), FPC interface, and multi-voltage support (3.0V/7.0V/6V), it meets rigorous requirements for dashboards, control panels, and telematics systems.
Details
Engineered for commercial treadmills, this FSTN LCD display module delivers sunlight-readable 89×134.4mm display with 1000cd/㎡ brightness. Featuring 12 o'clock viewing angle, FPC interface, and -20℃~70℃ operation, it withstands gym environments while showing speed/incline/heart rate data.
Details
Engineered for luxury vessels, this VA LCD display delivers high-contrast 65.32×32.82mm negative display with 1000cd/㎡ brightness. Featuring 0.25 viewing angle optimization, salt-spray resistance, and -30℃~80℃ operational range, it meets rigorous demands for yacht navigation and control systems.
Details
Precision-engineered for automotive dashboards, this display module delivers high-contrast 50.27×74mm negative display with 6 o'clock viewing angle. Featuring FPC connectivity, -35℃~85℃ operational range, and transmissive backlighting, it meets rigorous requirements for speedometers, fuel gauges, and warning systems.
Details
Designed for secondary instrument cluster displays, this lcd display module STN-Yellow Green LCD delivers crisp 35.5×25.5mm positive display with 6 o'clock viewing angle. Featuring rugged PIN interface, -30℃~80℃ operation, and ultra-low 3.0V power consumption, it reliably shows odometer/trip data in all driving conditions.
Details
Engineered for modern home appliances, this custom control display delivers crisp 42×34.5mm negative display with blue backlight. Featuring dual FPC+COG interface, -20℃~70℃ operation, and ultra-compact 43.2×35.7mm footprint, it provides reliable control feedback for refrigerators, washing machines, and smart kitchen devices.
Details
Designed for industrial data display, this character STN display delivers crisp 2004-character dot matrix (70.4×20.8mm) with transflective polarizer. Featuring ZEBRA connector interface, 5V operation, and -20℃~70℃ thermal stability, it provides reliable alphanumeric readouts for control panels and instrumentation.
Details
Precision-engineered for industrial instruments, this FSTN graphic display delivers high-resolution 256×128 graphics (44.145×25.265mm) with blue negative film. Featuring SPI interface, 3.0V low-power operation, and -20℃~60℃ thermal stability, it provides crisp data visualization for test equipment and control systems.
Details
This COG FSTN LCD module delivers crisp 128×64 FSTN graphics display (55.01×27.49mm) with transflective polarizer. Featuring FPC interface, 3.3V low-power operation, and -20℃~70℃ thermal stability, it provides reliable data visualization for industrial controls and portable devices in all lighting conditions.
Details
Designed for industrial character display applications, this character COB display features a 1602 (16x2) character format with transflective technology. The 66×16mm active area delivers clear alphanumeric readouts with ZEBRA connector interface, 5V operation, and reliable performance in 0℃~50℃ environments.
Details
