Precision Display, Beyond Limits

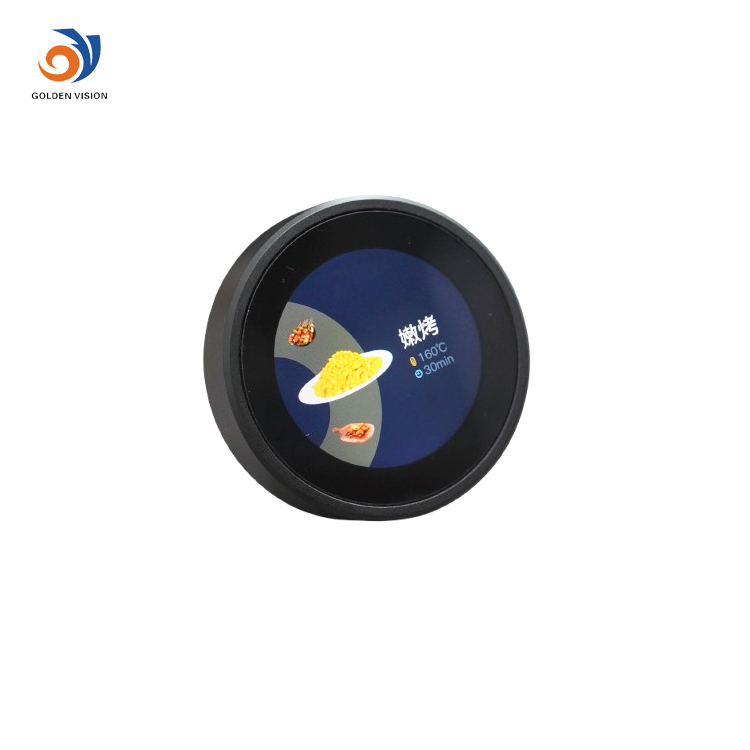

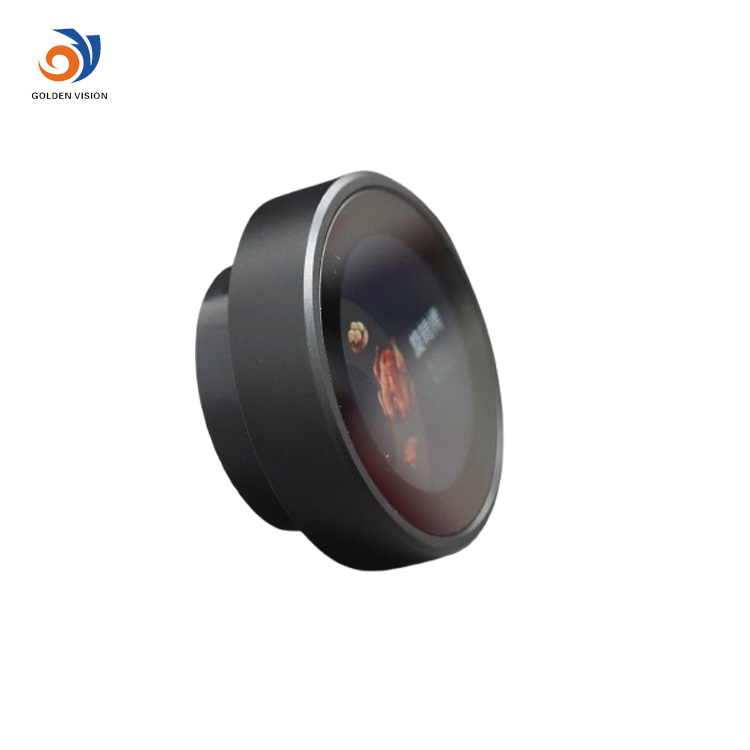

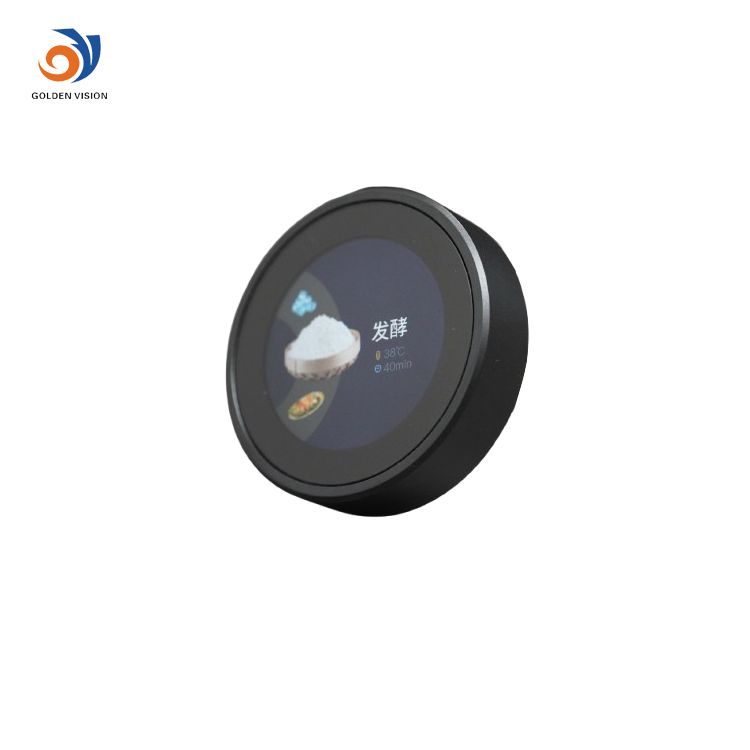

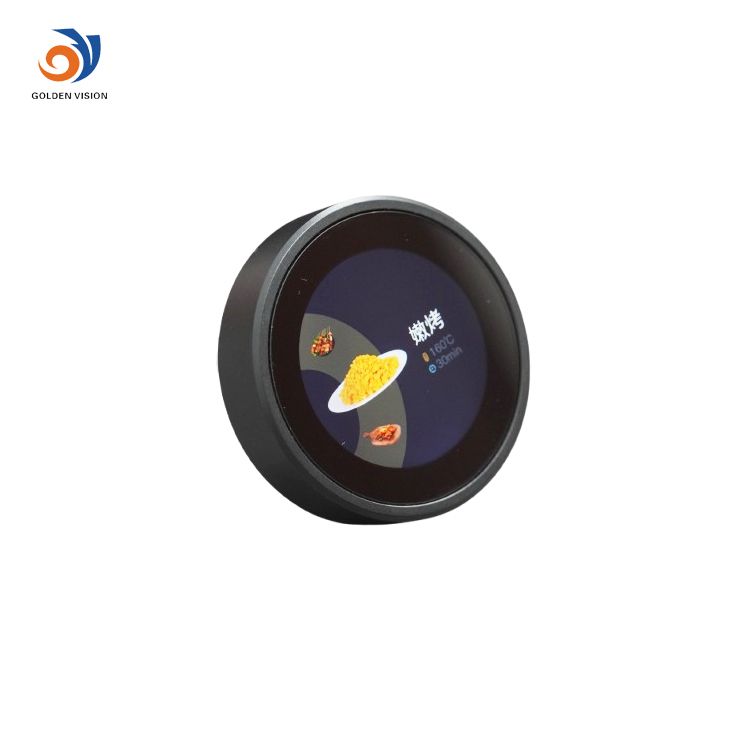

Intelligent knob display solution: 1.6Inch Circular Display Module, equipped with 400 × 400 high-definition resolution (318 PPI), achieving full angle display without blind spots. Quickly integrate through 4PIN+USB dual interfaces.
Item No :
1.6Inch Circular Display ModuleOrder(MOQ) :
500 PiecesPayment :
TT TransferProduct Origin :
Anhui, ChinaSupplier Type :
ManufacturerLead Time :
About 20-25 days|
SPECIFICATION INFORMATION |
|
|
External Dimensions |
59.0mm |
|
Screen Size |
1.6 Inches |
|
Screen Resolution |
400x400pixel |
|
Screen |
TFT full view circular screen |
|
Output Port |
4PIN+USB |
|
Operating Temperature |
-10℃~+70℃ |
|
Application |
Microwave oven,washing machine and other white household appliances,can also be used in multimedia audio and power amplifier,medical equipment. |
Main Features and Benefits
1. Perfect circular UI design (1.6Inch Circular Display Module)
400 × 400 circular high-definition resolution (PPI 318), with no blind spots and full view display
A circular menu layout optimized for knob interaction, with intuitive operation logic
59mm standard knob size, directly replacing traditional mechanical knobs
2. Appliance level reliability
-10 ℃~70 ℃ wide temperature support, suitable for high temperature environments in ovens/low temperature environments in refrigerators
Surface anti oil coating, resistant to penetration of kitchen oil stains
Waterproof design (compliant with IP54 rating, to be confirmed)
3. Intelligent control integration

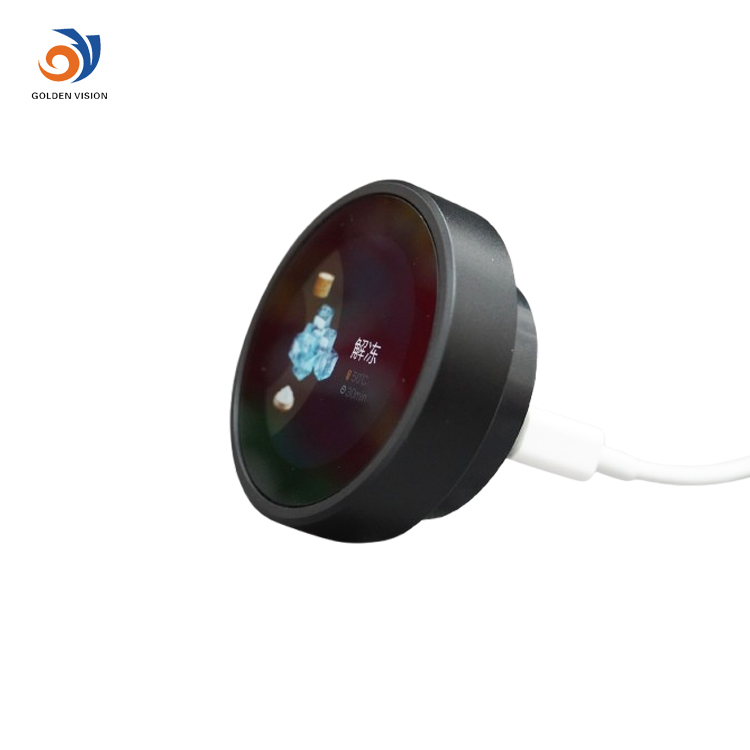

Dual interface support: 4PIN quick wiring+USB direct connection debugging
The torque of the knob can be customized (within the range of 200-500gf · cm)
Support tactile feedback (optional vibration motor)
4. Plug and play compatibility
Compatible with mainstream home appliance control boards (Renesas/NXP solutions)
Pre installed white goods icon library (microwave/laundry/oven mode)
USB interface real-time debugging UI, reducing development cycle by 50%
Application Scenarios
1. Smart home appliances: microwave/oven circular display module, high temperature environment visibility (stable at 70 ℃)
2. Health care: Dialysis machine/atomizer adjustment interface, medical grade tactile accuracy (± 1 ° adjustment)
3. Professional audio: DJ mixing console/amplifier volume control, circular level table visualization
4. Industrial control: laser cutting power knob, reliable operation in -10 ℃ cold storage environment
5. Automotive electronics: car air conditioning knob, anti glare design suitable for strong light cabin
Why choose Anhui Golden Vision Optoelectronics OEM LCD panel supplier?
1. Deep foundation and strength guarantee: We have been deeply involved in the LCD display field for 30 years and have accumulated rich experience in production, manufacturing, and sales. This not only means mature and stable processes, but also represents a profound understanding of market demand and the ability to continuously innovate.
2. Vertical integration and controllable quality: The core advantage of Golden Vision lies in its ability to self produce throughout the entire industry chain. We have achieved independent production of everything from the core LCD display screen to the critical PCBA (printed circuit board components). This deep vertical integration ensures full quality control from the source to the finished product, effectively ensuring product consistency and reliability
Significantly shorten delivery time and enhance supply chain resilience.
3. Business team, one-stop service: We have a strong team of professional engineers with full technical capabilities covering the entire process from low-level hardware design to high-level software development. Whether it's professional software and hardware engineers solving technical problems, UI design teams creating intuitive and easy-to-use user interfaces, or structural engineering teams ensuring product durability and perfect compatibility, JinShiShi can provide you with comprehensive, one-stop technical support and solutions from concept to mass production.
Anhui Golden Vision Optoelectronics, with 30 years of craftsmanship, full industry chain self-produced strength, and top cross disciplinary engineering team, is committed to becoming your most trusted display technology partner, helping your products stand out in the fierce market competition!
