Precision Display, Beyond Limits

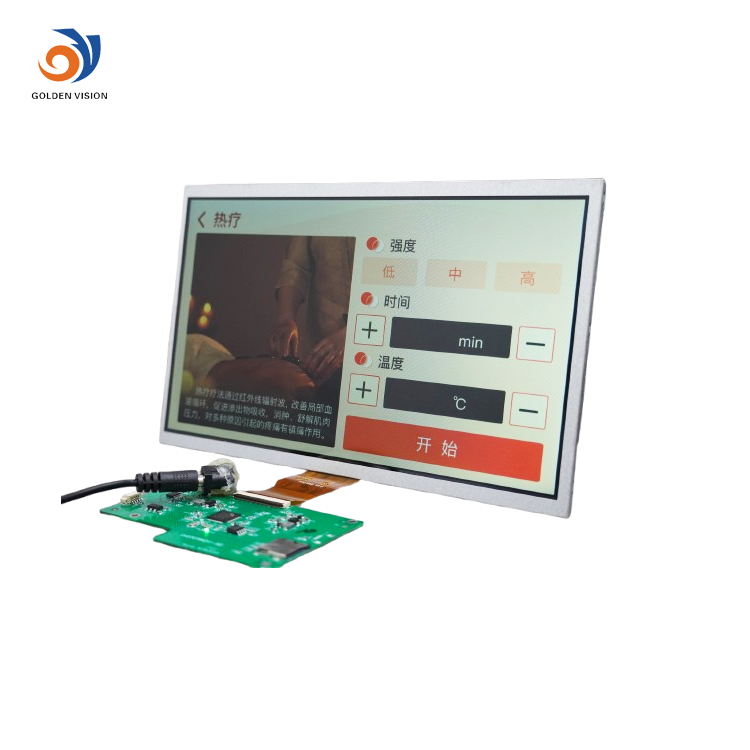

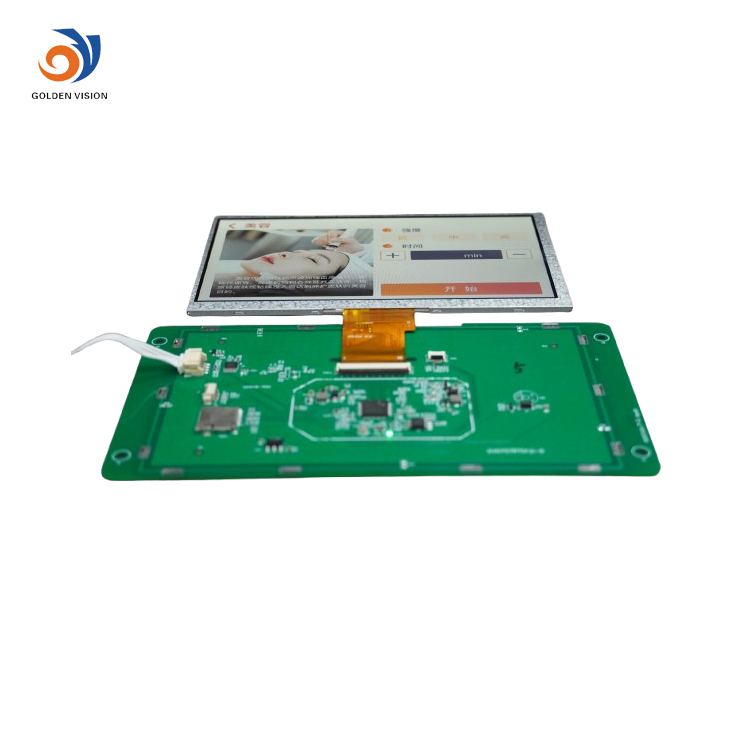

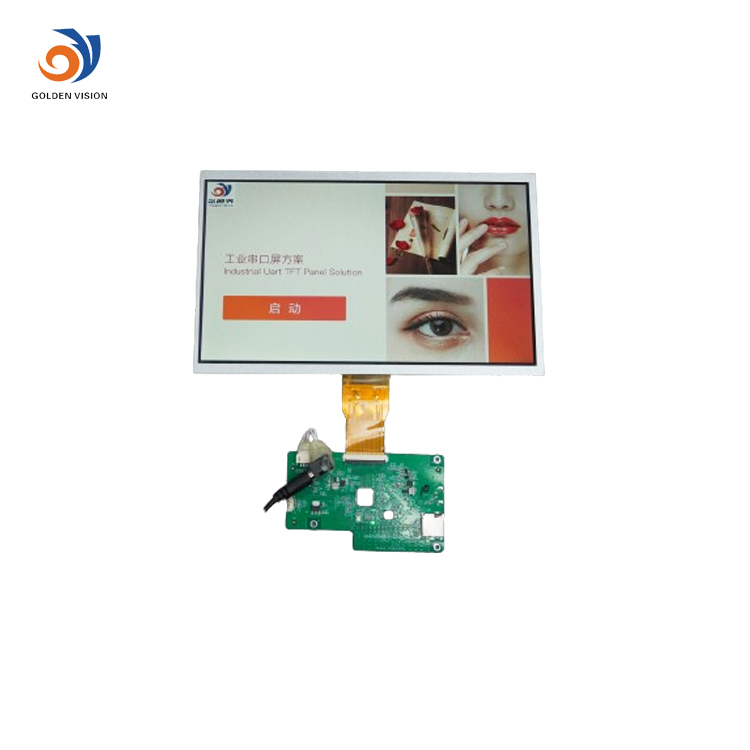

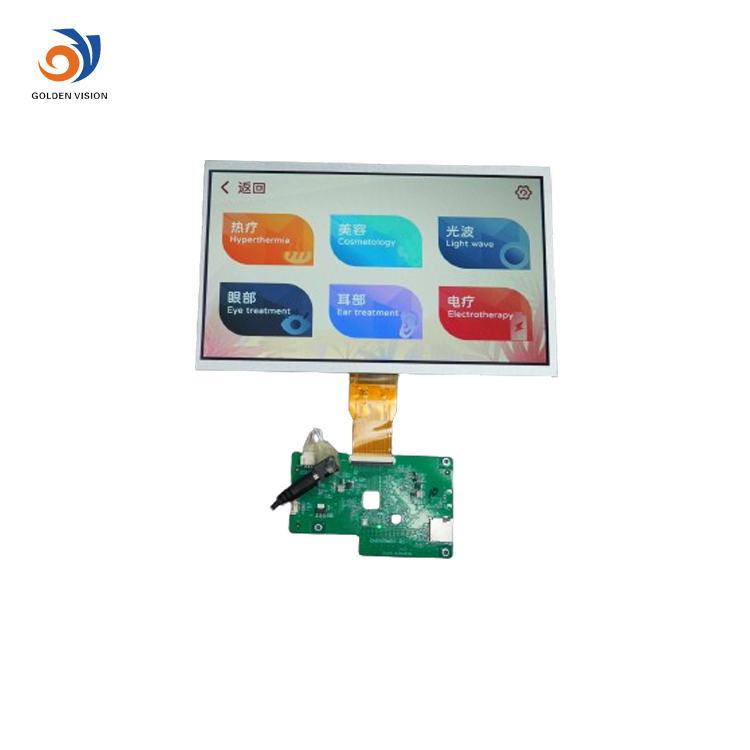

This 10.1 Inch TFT LCD Display With 1024×600 high-definition resolution with vibrant color performance and 178° full-viewing angle. Featuring RGB interface and industrial-grade reliability (-20℃~70℃ operating temperature), the display module offers 300cd/m² high brightness for clear visibility in various lighting conditions. Ideal for industrial HMI, medical imaging, and commercial kiosk applications requiring large-format visual solutions.
Item No :
10.1Inch TFT LCD Display With 1024×600Order(MOQ) :
500 PiecesPayment :
TT TransferProduct Origin :
Anhui, ChinaSupplier Type :
ManufacturerLead Time :
About 20-25 days|
Display Type |
10.1",Transmissive,TFT |
|
Display Resolution |
1024RGB*600 |
|

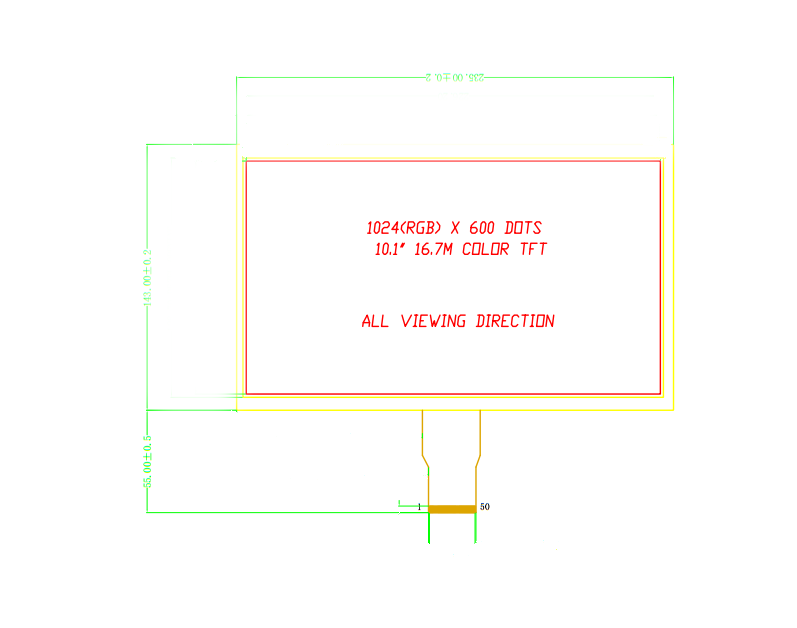

Display Area |
222.72*125.28 |
|
Appearance Size |
235*143 |
|
Viewing Angle |
ALL |
|
Power Supply |
VCC=3.3~3.6V |
|
Interface |
RGB |
|
Back-Light |
VF=18-20V,IF=140mA,300CD/M2 |
|
Operation Temperature |
-20°C~+70°C |
|
Storage Temperature |
-30°C~+80°C |
Main Features and Benefits
1. Excellent visual performance
1024 × 600 HD resolution (118 PPI), 16:9 widescreen ratio
300cd/m ² high brightness backlight, improves visibility by 50% in strong light environments
Full angle technology (178 ° H/V), precise color reproduction
2. Industrial grade reliable design
Wide temperature range support (-20 ℃~70 ℃ working/-30 ℃~80 ℃ storage)
Low power design (operating voltage of 3.3~3.6V, backlight current of only 140mA)
Anti vibration design, tested for industrial EMC compatibility
3. Efficient system integration
Standard RGB interface, directly connected to mainstream embedded platforms
Optimize display area (222.72 × 125.28mm), screen to body ratio>92%
Compact appearance size (235 × 143mm), saving equipment space
Application Scenarios

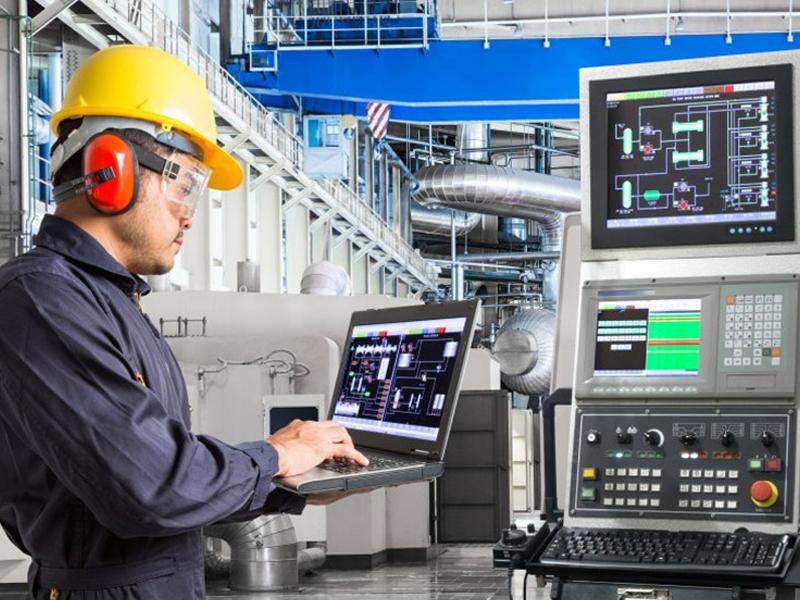

1. Industrial automation: CNC console/production line monitoring system, large screen multi parameter display on the same screen
2. Medical imaging: digital X-ray cart/ultrasound diagnostic device, high brightness presentation of medical image details
3. Intelligent transportation: Vehicle dispatch terminal/charging pile screen, wide temperature support for stable operation in extreme environments
4. Commercial retail: Self checkout machine/digital menu board, 300cd/m ² brightness suitable for strong light in shopping malls
5. Smart City: Public information kiosks/ticketing terminals, 7 × 24 hours continuous operation reliability
Why choose Anhui Golden Vision Optoelectronics OEM LCD panel supplier?
1. Deep foundation and strength guarantee: We have been deeply involved in the LCD display field for 30 years and have accumulated rich experience in production, manufacturing, and sales. This not only means mature and stable processes, but also represents a profound understanding of market demand and the ability to continuously innovate.
2. Vertical integration and controllable quality: The core advantage of Golden Vision lies in its ability to self produce throughout the entire industry chain. We have achieved independent production of everything from the core LCD display screen to the critical PCBA (printed circuit board components). This deep vertical integration ensures full quality control from the source to the finished product, effectively ensuring product consistency and reliability.Significantly shorten delivery time and enhance supply chain resilience.
3. Business team, one-stop service: We have a strong team of professional engineers with full technical capabilities covering the entire process from low-level hardware design to high-level software development. Whether it's professional software and hardware engineers solving technical problems, UI design teams creating intuitive and easy-to-use user interfaces, or structural engineering teams ensuring product durability and perfect compatibility, JinShiShi can provide you with comprehensive, one-stop technical support and solutions from concept to mass production.
Anhui Golden Vision Optoelectronics, with 30 years of craftsmanship, full industry chain self-produced strength, and top cross disciplinary engineering team, is committed to becoming your most trusted display technology partner, helping your products stand out in the fierce market competition!
