Precision Display, Beyond Limits

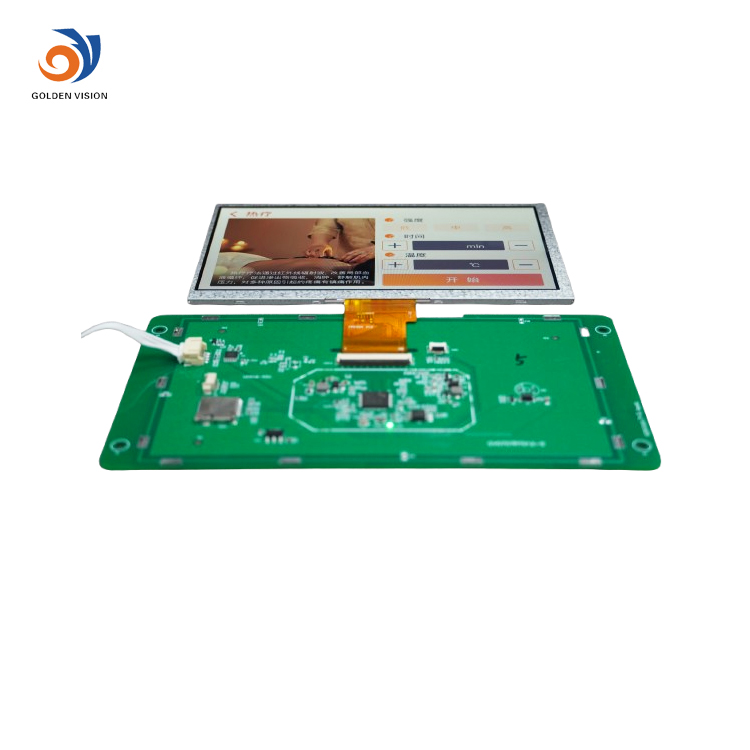

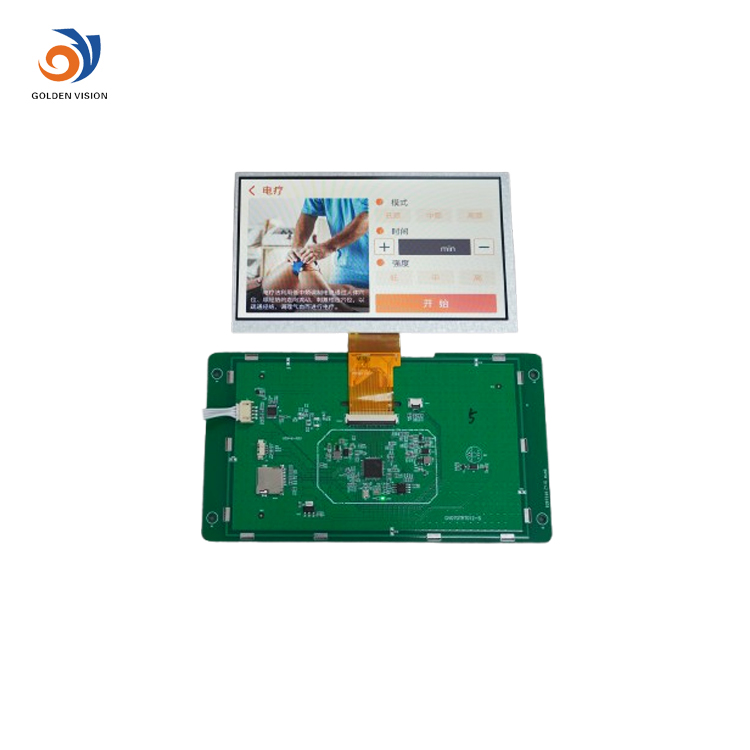

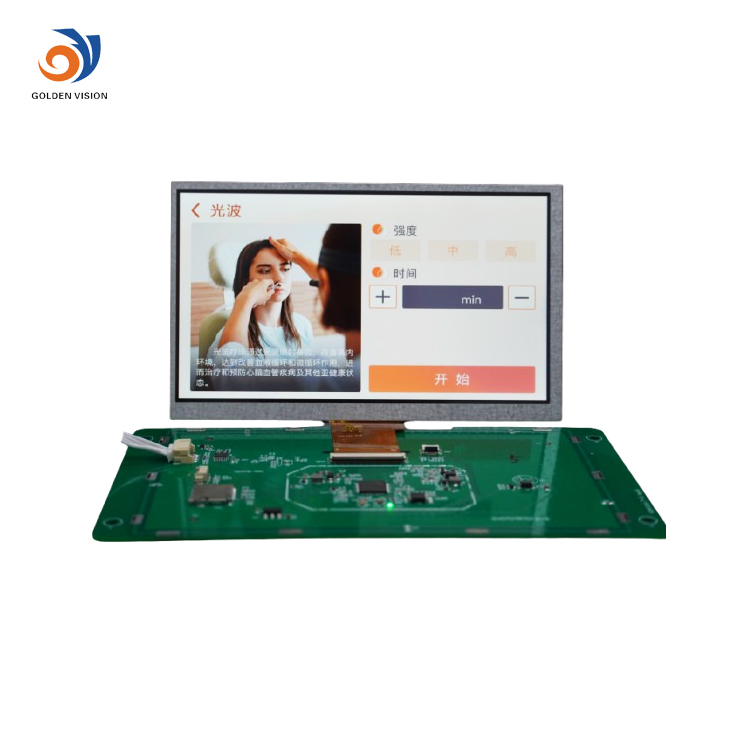

7Inch TFT LCD display screen with 1024*600 resolution delivers vibrant color performance and 170° full viewing angle. Engineered for industrial durability with -20℃ to 70℃ operating temperature, this ultra-slim module (thickness ≤2.0mm) features RGB/MIPI interface compatibility and low power consumption. Ideal for HMI control panels, medical devices, and portable instrumentation requiring reliable visual interaction.
Item No :
OEM 7 inch TFT Display ManufacturerOrder(MOQ) :
500 PiecesPayment :
TT TransferProduct Origin :
Anhui, ChinaSupplier Type :
ManufacturerLead Time :
About 20-25 days|
Model Number |
GVH070TGNC011-29626A(LCM) |
|
Display Type |
7",Transmissive,TFT |
|
Display Resolution |
1024RGB*600 |
|
Display Area |
154.20*85.9 |
|

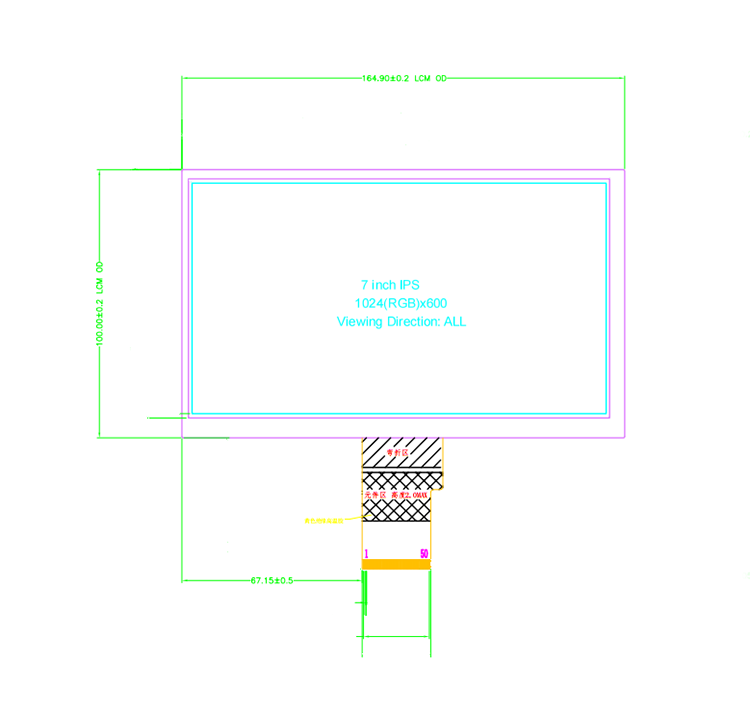

Appearance Size |
164.9*100 |
|
Viewing Angle |
ALL |
|
Interface |
RGB |
|
Operation Temperature |
-20°C~+70°C |
|
Storage Temperature |
-30°C~+80°C |
Main Features and Benefits
1. Excellent visual performance
1024 × 600 high-definition resolution (170 PPI), 16:9 widescreen ratio
NTSC color gamut ≥ 72%, contrast ratio 800:1, supports full view viewing
Optional 500nits high brightness screen (visible in outdoor strong light environments)
2. Industrial grade reliability
Wide temperature range support (-20 ℃~70 ℃ working/-30 ℃~80 ℃ storage)
Surface anti glare hardening treatment (3H hardness), anti fingerprint coating
Passed 5G seismic testing and 15KV ESD protection certification
3. Efficient integrated design
Ultra thin structure (thickness ≤ 2.0mm), screen to body ratio>90%
Supports RGB/MIPI dual interfaces (compatible with Rockchip/Allwinner platforms)
Provide free embedded driver solutions (Linux/Android/RTOS)
Application Scenarios
1. Industrial Automation: PLC Console/AGV Vehicle Terminal - Wide Temperature Anti Electromagnetic Interference, 24/7 Stable Operation
2. Medical equipment: monitor/portable diagnostic device - high-resolution presentation of medical image details
3. Smart home: central control panel/smart access control screen - wide viewing angle and multi angle operation visibility
4. In car electronics: In car navigation/charging pile display screen - seismic design in accordance with GB/T 28046 standard
5. Commercial terminal: POS machine/self-service terminal - high brightness screen adapted to the strong light environment of shopping malls
Why choose Anhui Golden Vision Optoelectronics OEM LCD panel supplier?
1. Deep foundation and strength guarantee: We have been deeply involved in the LCD display field for 30 years and have accumulated rich experience in production, manufacturing, and sales. This not only means mature and stable processes, but also represents a profound understanding of market demand and the ability to continuously innovate.
2. Vertical integration and controllable quality: The core advantage of Golden Vision lies in its ability to self produce throughout the entire industry chain. We have achieved independent production of everything from the core LCD display screen to the critical PCBA (printed circuit board components). This deep vertical integration ensures full quality control from the source to the finished product, effectively ensuring product consistency and reliability
Significantly shorten delivery time and enhance supply chain resilience.
3. Business team, one-stop service: We have a strong team of professional engineers with full technical capabilities covering the entire process from low-level hardware design to high-level software development. Whether it's professional software and hardware engineers solving technical problems, UI design teams creating intuitive and easy-to-use user interfaces, or structural engineering teams ensuring product durability and perfect compatibility, JinShiShi can provide you with comprehensive, one-stop technical support and solutions from concept to mass production.
Anhui Golden Vision Optoelectronics, with 30 years of craftsmanship, full industry chain self-produced strength, and top cross disciplinary engineering team, is committed to becoming your most trusted display technology partner, helping your products stand out in the fierce market competition!
Enterprise Services
1. Custom LCD Solutions
0.96Inch TFT LCD Touch Display Module is a small yet powerful display solution ideal for a variety of applications that require a compact, high-definition color display and touch interaction.
Details
Premium 1.14 inch Miniature TFT LCD Display, engineered to deliver crisp visuals with a sharp 135 × 240-pixel resolution. Designed for space-constrained applications, this ultra-slim display features advanced TFT technology for vibrant color reproduction, wide viewing angles, and exceptional image clarity.
Details
As a leading LCD screen manufacturer, we have launched a high-performance Industrial 3.5" Transmissive TFT Screen . Equipped with 640 × 480 (VGA level) high-definition resolution and RGB parallel interface, it is designed to provide stable and efficient visual solutions for industrial control, medical equipment, and embedded systems.
Details
This 4.3 Inch TFT In Smart Factory HMI Control Panel delivers robust performance with 480×272 resolution and a 24-bit RGB parallel interface, driven by the ST7282 IC for seamless integration. Engineered for industrial environments, it operates flawlessly within -20℃ to 70℃ temperatures and withstands storage from -30℃ to 80℃. The compact design (105.3×67×2.9mm) and wide viewing angle make it ideal for space-constrained applications requiring stable visual output.
Details
A 4 Inch Industrial TFT Display designed specifically for industrial applications, featuring a fully transparent working mode and providing 480 × 480 high-resolution and full view visual effects. Equipped with ST7701S driver IC, supporting RGB interface, working voltage 3.3V. Wide temperature design (-20 ℃ to 70 ℃) ensures stable operation in harsh environments, compact appearance (74.66 × 76.54 × 2.2mm) suitable for space sensitive equipment, suitable for industrial control, medical instruments and portable terminals.
Details
The 5.5Inch 720x1280 TFT LCD Module For Automotive HMI is equipped with JD9365 driver IC, achieving excellent picture quality with 720 × 1280 high-definition resolution and full view display technology. 1.75mm world's thinnest design saves device space, 2.8V ultra-low power consumption extends battery life. Wide temperature support (-20 ℃~70 ℃) ensures stable operation of medical equipment, vehicle systems, and industrial HMIs in harsh environments, and RGB interface plug and play reduces development costs.
Details
7Inch TFT LCD display screen with 1024*600 resolution delivers vibrant color performance and 170° full viewing angle. Engineered for industrial durability with -20℃ to 70℃ operating temperature, this ultra-slim module (thickness ≤2.0mm) features RGB/MIPI interface compatibility and low power consumption. Ideal for HMI control panels, medical devices, and portable instrumentation requiring reliable visual interaction.
Details
This 8 Inch MIPI TFT LCD dispaly delivers 800×1280 HD resolution with full-viewing angle clarity. Featuring MIPI interface and industrial-grade JD9365DA-H3 driver IC, the ultra-slim module (thickness 4.43mm) operates reliably from -20℃ to 70℃. Ideal for industrial HMI, medical imaging, and commercial kiosks requiring wide-format visual performance.
Details
This 10.1 Inch TFT LCD Display With 1024×600 high-definition resolution with vibrant color performance and 178° full-viewing angle. Featuring RGB interface and industrial-grade reliability (-20℃~70℃ operating temperature), the display module offers 300cd/m² high brightness for clear visibility in various lighting conditions. Ideal for industrial HMI, medical imaging, and commercial kiosk applications requiring large-format visual solutions.
Details
