Precision Display, Beyond Limits

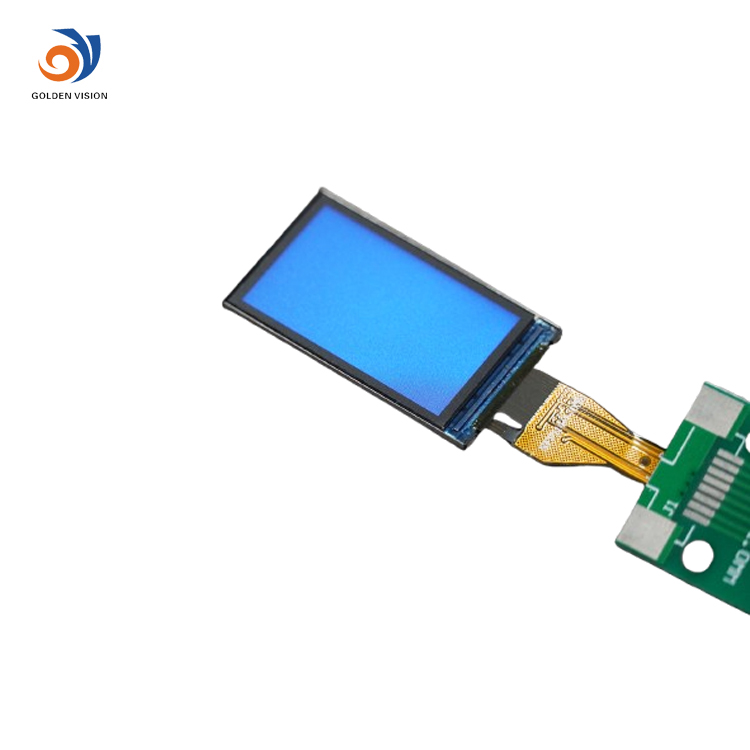

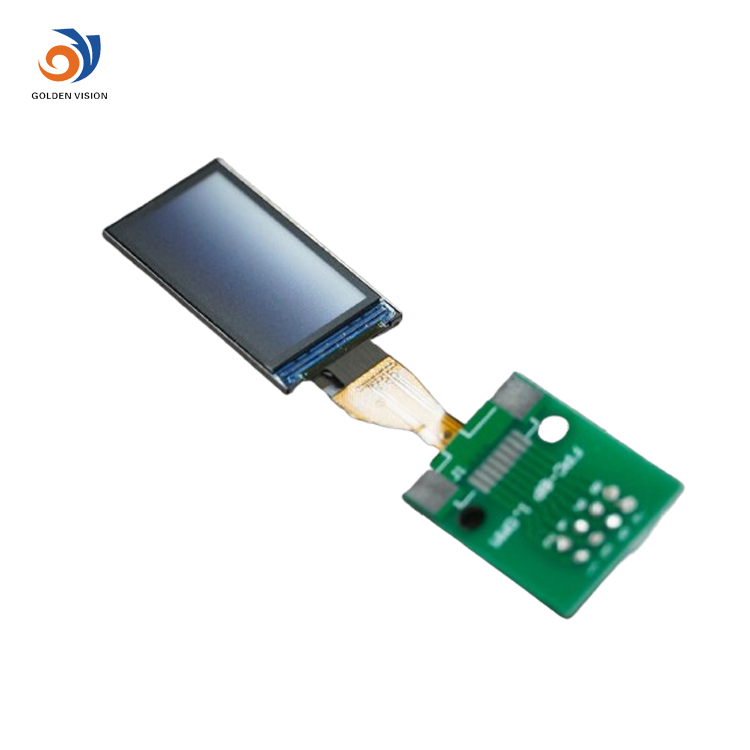

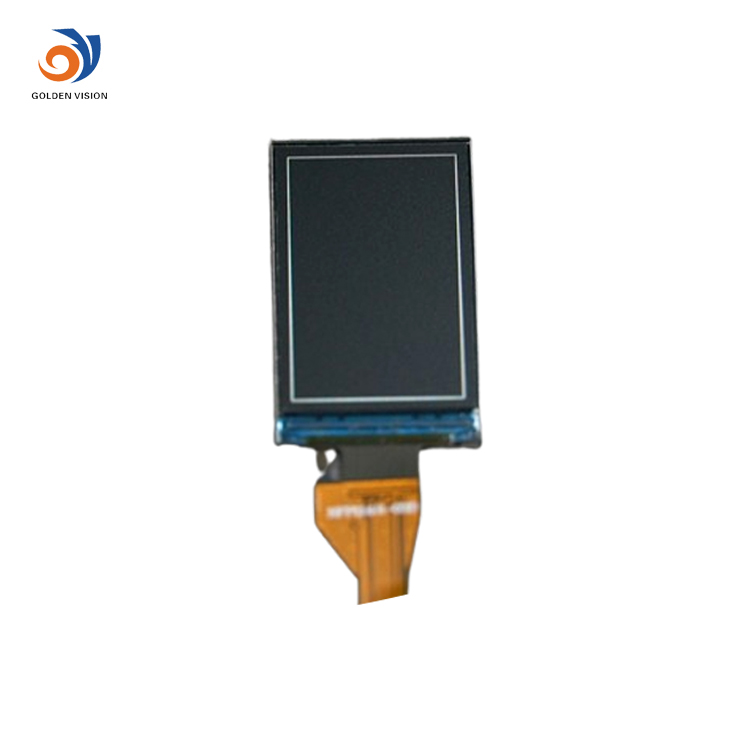

Premium 1.14 inch Miniature TFT LCD Display, engineered to deliver crisp visuals with a sharp 135 × 240-pixel resolution. Designed for space-constrained applications, this ultra-slim display features advanced TFT technology for vibrant color reproduction, wide viewing angles, and exceptional image clarity.
Item No :
Miniature 1.14" TFT DisplayOrder(MOQ) :
500 PiecesPayment :
TT TransferProduct Origin :
Anhui, ChinaSupplier Type :
ManufacturerLead Time :
About 20-25 days|
Model |
GVH011TGNC011-30203A(LCM) |
|
Size |
1.14 Inch TFT |
|
Resolution |
135 *240 |
|
Display area |
14.86 x 24.91mm |
|

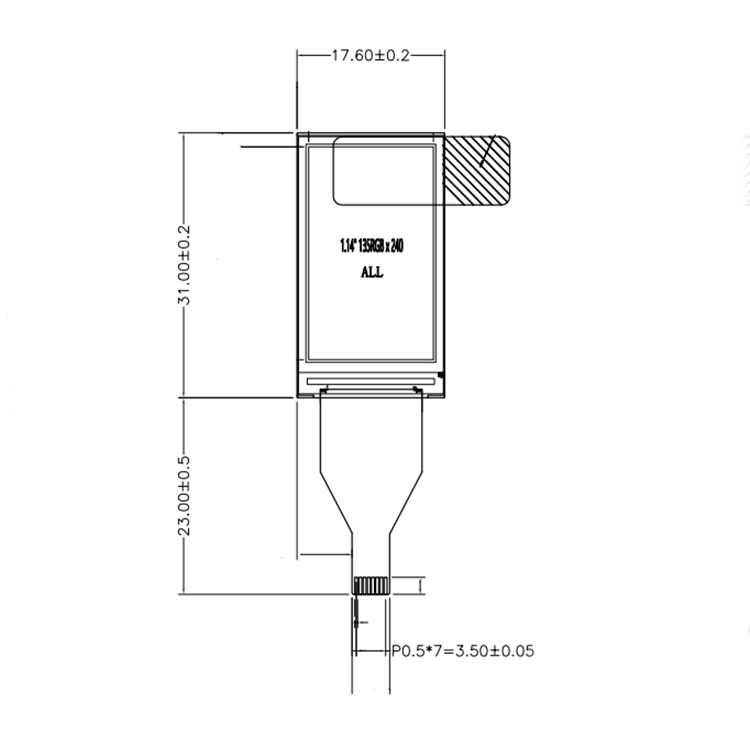

Appearance size |
17.60 x 31 x 1.6 mm |
|
Driver IC |
ST7789P3 |
|
Viewing angle |
Full viewing angle |
|
Interface |
RGB |
|
Operating voltage |
2.8V-3.3V |
|
Storage temperature |
-30+80℃ |
|
Operating temperature |
-20+70℃ |
Main Features and Benefits
Compact Size: 1.14 inch Miniature TFT LCD Display diagonal screen (ideal for wearables, IoT devices, and portable instruments).
High Resolution: 135 × 240 pixels for detailed graphics and text.
TFT Technology: Superior brightness (≥300 cd/m²) and contrast ratio.
Versatile Interface: Supports SPI/I²C/8080 parallel interface (model-dependent).
Low Power Consumption: Optimized for battery-operated devices.
Robust Design: Operating temperature: -20°C to +70°C; durable FPC connector.
Application Scenarios
1. Wearable smart devices
Smart wristband/ring: ultra small size suitable for micro wrist/finger devices
Health Monitor: Real time display of heart rate/blood oxygen/exercise data (low-power advantage)
Electronic ink screen replacement: requires dynamic scene refresh (such as sports wristband animation interface)
2. Industrial control terminal
Micro HMI panel: device status monitoring (temperature/pressure numerical display)
Handheld instrument: reading interface for multimeter and gas detector
Sensor interactive screen: human-machine interaction window for industrial IoT nodes
3. Consumer electronics products
TWS earphone charging case: visualization of battery level/connection status
Mini game console: Retro handheld screen (Game Boy style device)
Smart home central control: thermostat/switch panel display core
Why choose Anhui Golden Vision Optoelectronics OEM LCD panel supplier?
1. Deep foundation and strength guarantee: We have been deeply involved in the LCD display field for 30 years and have accumulated rich experience in production, manufacturing, and sales. This not only means mature and stable processes, but also represents a profound understanding of market demand and the ability to continuously innovate.
2. Vertical integration and controllable quality: The core advantage of Golden Vision lies in its ability to self produce throughout the entire industry chain. We have achieved independent production of everything from the core LCD display screen to the critical PCBA (printed circuit board components). This deep vertical integration ensures full quality control from the source to the finished product, effectively ensuring product consistency and reliability
Significantly shorten delivery time and enhance supply chain resilience.
3. Business team, one-stop service: We have a strong team of professional engineers with full technical capabilities covering the entire process from low-level hardware design to high-level software development. Whether it's professional software and hardware engineers solving technical problems, UI design teams creating intuitive and easy-to-use user interfaces, or structural engineering teams ensuring product durability and perfect compatibility, JinShiShi can provide you with comprehensive, one-stop technical support and solutions from concept to mass production.
Anhui Golden Vision Optoelectronics, with 30 years of craftsmanship, full industry chain self-produced strength, and top cross disciplinary engineering team, is committed to becoming your most trusted display technology partner, helping your products stand out in the fierce market competition!
