Precision Display, Beyond Limits
The 5.5Inch 720x1280 TFT LCD Module For Automotive HMI is equipped with JD9365 driver IC, achieving excellent picture quality with 720 × 1280 high-definition resolution and full view display technology. 1.75mm world's thinnest design saves device space, 2.8V ultra-low power consumption extends battery life. Wide temperature support (-20 ℃~70 ℃) ensures stable operation of medical equipment, vehicle systems, and industrial HMIs in harsh environments, and RGB interface plug and play reduces development costs.
Item No :
5.5Inch 720x1280 TFT LCD Module For Automotive HMIOrder(MOQ) :
500 PiecesPayment :
TT TransferProduct Origin :
Anhui, ChinaSupplier Type :
ManufacturerLead Time :
About 20-25 days|
Model |
GVH055TGNP021-28565A |
|
Size |
5.5 inch |
|
Resolution |
7 2 0 *1 2 8 0 |
|
Operating mode |
Full transparency |
|
Display area |
68.04(H) x 1 2 0 . 9 6 (V) |
|

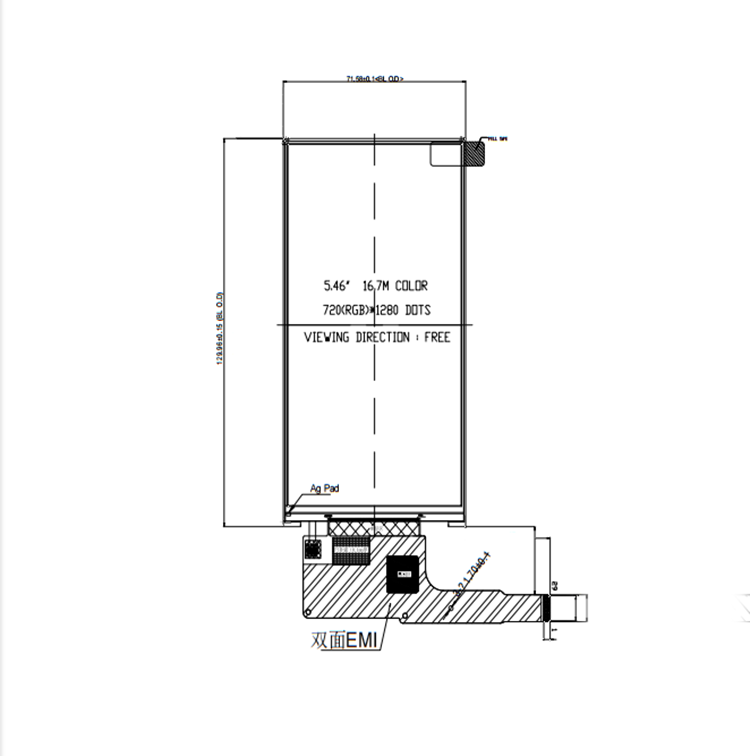

Appearance size |
71.58(W) x 129.96(L) x 1.75 (H) |
|
Driver IC |
JD9365 |
|
Viewing angle |
Full viewing angle |
|
Interface |
RGB |
|
Operating voltage |
2.8V |
|
Storage temperature |
-30+80℃ |
|
Operating temperature |
-20+70℃ |
Main Features and Benefits
1. Flagship level visual performance
720 × 1280 high-definition resolution (267 PPI), full transparency full view technology, NTSC color gamut>70%
120.96mm vertical display area, displaying 20% more content than screens of the same level
2. Disruptive structural design
The world's thinnest 1.75mm module (industry average ≥ 2.5mm), reducing weight by 35%
2.8V ultra-low voltage drive reduces power consumption by 40% compared to 3.3V screens
Screen to body ratio of 93%+(external dimensions 71.58 × 129.96mm)
3. Military grade reliability
-20 ℃~70 ℃ wide temperature operation (-30 ℃~80 ℃ storage)
JD9365 driver IC passes 1000 hour salt spray test
Anti ESD 16KV, in compliance with the GB/T 28046 vibration standard for vehicles
4. Zero development cost integration
RGB interface directly connected to Ruixin Micro/Quanzhi/NXP platform
• Free provision of Linux/Android driver source code
Application Scenarios
1. Intelligent cockpit: In car central control/rear entertainment system - earthquake resistant design+wide temperature support for bumpy environments
2. Industry 4.0: AGV dispatch terminal/PLC human-machine interface -7 × 24-hour continuous operation+electromagnetic anti-interference
3. Medical Imaging: Portable Ultrasonic Device/Endoscopic Display -720P Accurate Reconstruction of Biological Tissue Texture
4. Business interaction: Intelligent POS/self-service ordering machine -2.8V voltage compatible with mobile power supply
5. Smart Home: High end Central Control Panel/Magic Mirror -1.75mm Seamless Fit Curved Design
Why choose Anhui Golden Vision Optoelectronics OEM LCD panel supplier?
1. Deep foundation and strength guarantee: We have been deeply involved in the LCD display field for 30 years and have accumulated rich experience in production, manufacturing, and sales. This not only means mature and stable processes, but also represents a profound understanding of market demand and the ability to continuously innovate.
2. Vertical integration and controllable quality: The core advantage of Golden Vision lies in its ability to self produce throughout the entire industry chain. We have achieved independent production of everything from the core LCD display screen to the critical PCBA (printed circuit board components). This deep vertical integration ensures full quality control from the source to the finished product, effectively ensuring product consistency and reliability
Significantly shorten delivery time and enhance supply chain resilience.
3. Business team, one-stop service: We have a strong team of professional engineers with full technical capabilities covering the entire process from low-level hardware design to high-level software development. Whether it's professional software and hardware engineers solving technical problems, UI design teams creating intuitive and easy-to-use user interfaces, or structural engineering teams ensuring product durability and perfect compatibility, JinShiShi can provide you with comprehensive, one-stop technical support and solutions from concept to mass production.
Anhui Golden Vision Optoelectronics, with 30 years of craftsmanship, full industry chain self-produced strength, and top cross disciplinary engineering team, is committed to becoming your most trusted display technology partner, helping your products stand out in the fierce market competition!
