Precision Display, Beyond Limits

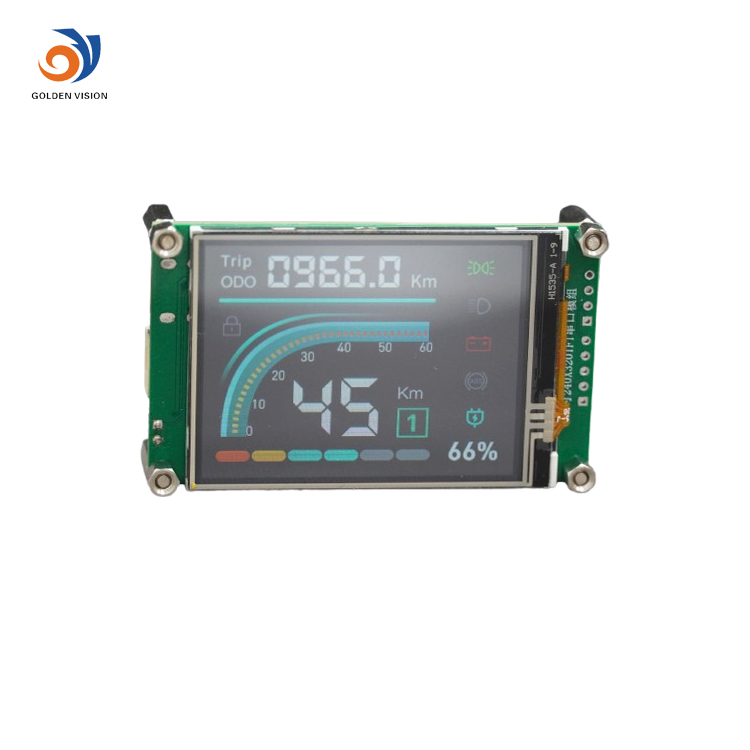

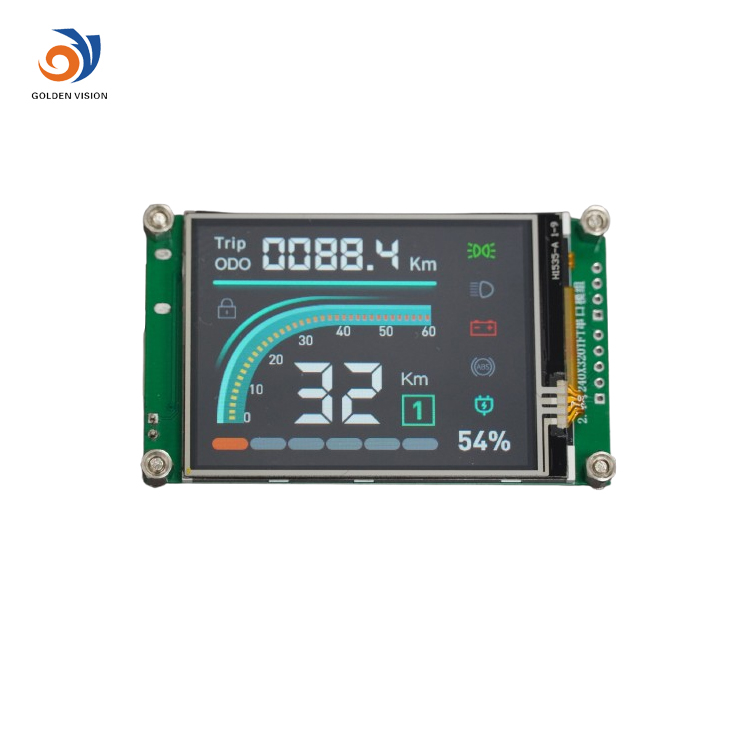

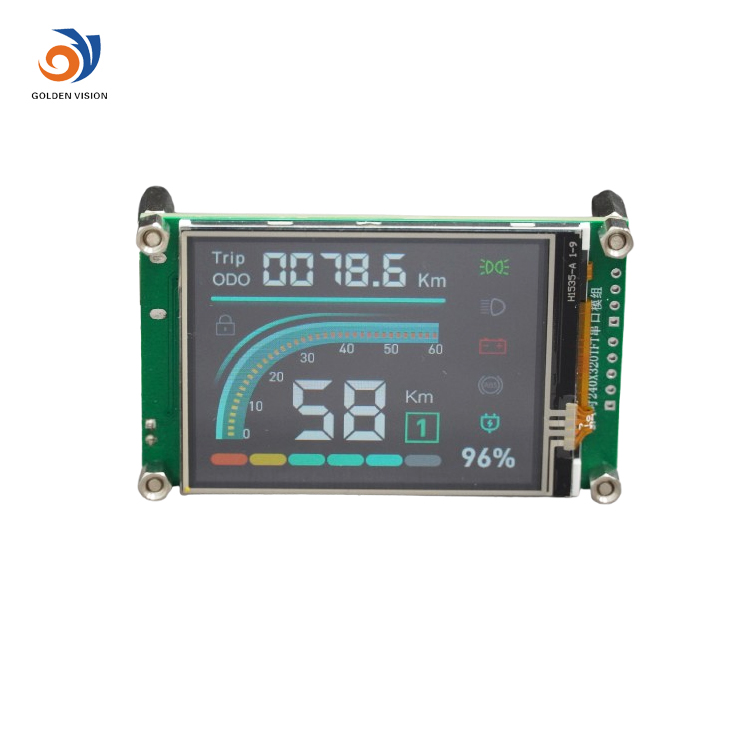

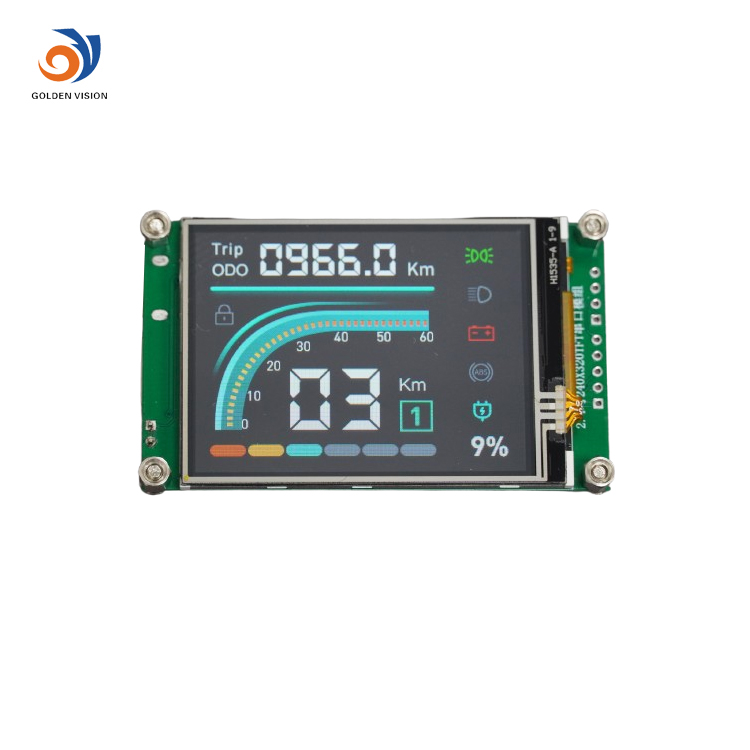

This 2.4 Inch IPS TFT display features 240×320 high-resolution and all-viewing angle clarity with UART serial interface for plug-and-play integration. Engineered for industrial reliability with -20℃~70℃ operation, 260cd/m² brightness, and resistive touch screen. Compact design (72×43×11.2mm) ideal for portable instruments, IoT devices, and control panels.
Item No :
2.4Inch IPS Serial Port TFT DisplayOrder(MOQ) :
500 PiecesPayment :
TT TransferProduct Origin :
Anhui, ChinaSupplier Type :
ManufacturerLead Time :
About 20-25 days
|
Product Specifications |
|
|
Model |
2.4Inch serial port screen |
|
Resolution |
240*320 |
|
Voltage |
5V |
|
Communication Method |
UART serial communication |
|
Screen Effective Display Area (AA) |
48.96mm*36.72mm |
|

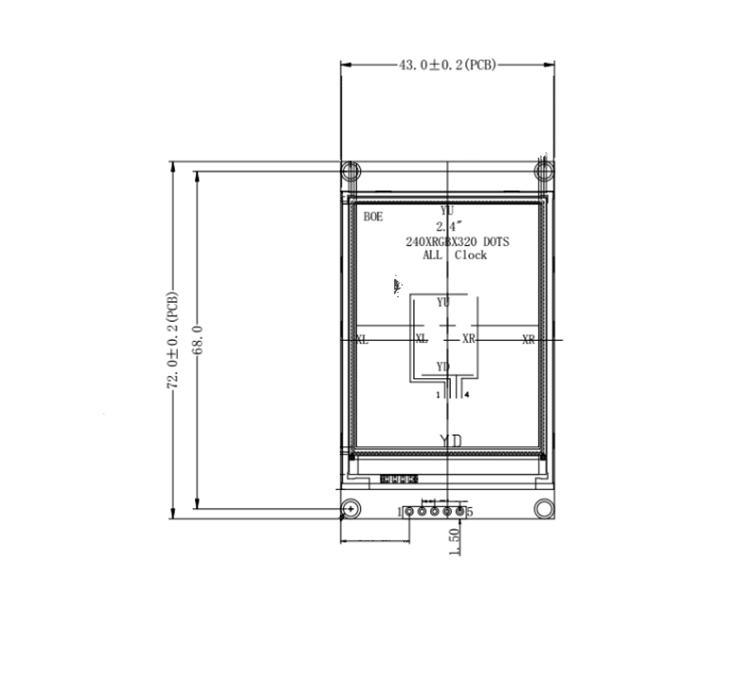

Product Dimensions |
72mm*43mm*11.2mm |
|
Operation Temperature |
-20～+70℃ |
|
Storage Temperature |
-30～+80℃ |
|
Display Type |
IPS LCD screen |
|
Backlight Tube |
LED |
|
Brightness (cd/m ²) |
Two hundred and sixty |
|
Perspective (L/R/U/D) |
All O'clock (full view) |
|
Touc-hscreen Type |
Resistive touch screen |
Main Features and Benefits
1. Excellent visual performance
IPS full view technology (178 ° all-round visibility), color shift free
240 × 320 high-definition resolution (PPI 166), with delicate and non grainy images
260cd/m ² high brightness, clear visibility in strong light environments
2. Minimalist development integration
UART serial communication, no need for complex driver development
Resistive touch screen, supporting glove/stylus operation (required in industrial scenarios)
5V single voltage power supply, compatible with Arduino/STM32 development board
3. Industrial grade robust design
Wide temperature range support (-20 ℃~70 ℃ working/-30 ℃~80 ℃ storage)
All metal backlight bracket, resistant to impact and vibration
11.2mm ultra-thin module (including touch layer), saving space
Application Scenarios
1. Industrial control: PLC handheld programmer/sensor terminal, resistance touch support glove operation
2. Portable Medical: Handheld Monitor/Infusion Pump Screen, Wide Temperature Tolerant Alcohol Wiping Disinfection
3. Smart Home: Security Panel/Temperature Controller Interface, 5V Voltage Compatible with Home Circuits
4. IoT terminals: smart meters/agricultural monitoring devices, serial communication reduces the threshold for embedded development
5. Retail terminal: portable POS machine/inventory scanner, 260cd/m ² brightness suitable for warehouse strong light
Why choose Anhui Golden Vision Optoelectronics OEM LCD panel supplier?
1. Deep foundation and strength guarantee: We have been deeply involved in the LCD display field for 30 years and have accumulated rich experience in production, manufacturing, and sales. This not only means mature and stable processes, but also represents a profound understanding of market demand and the ability to continuously innovate.
2. Vertical integration and controllable quality: The core advantage of Golden Vision lies in its ability to self produce throughout the entire industry chain. We have achieved independent production of everything from the core LCD display screen to the critical PCBA (printed circuit board components). This deep vertical integration ensures full quality control from the source to the finished product, effectively ensuring product consistency and reliability
Significantly shorten delivery time and enhance supply chain resilience.
3. Business team, one-stop service: We have a strong team of professional engineers with full technical capabilities covering the entire process from low-level hardware design to high-level software development. Whether it's professional software and hardware engineers solving technical problems, UI design teams creating intuitive and easy-to-use user interfaces, or structural engineering teams ensuring product durability and perfect compatibility, JinShiShi can provide you with comprehensive, one-stop technical support and solutions from concept to mass production.
Anhui Golden Vision Optoelectronics, with 30 years of craftsmanship, full industry chain self-produced strength, and top cross disciplinary engineering team, is committed to becoming your most trusted display technology partner, helping your products stand out in the fierce market competition!
Enterprise Services
1. Custom LCD Solutions
This 2.0Inch serial Port TFT display provides a high-definition resolution of 240 × 320 and a full view visual experience. Compact design (72 × 43 × 8.3mm), equipped with 128Mbit storage space, supporting 5V low voltage drive. Industrial grade wide temperature support (-20 ℃~70 ℃ working/-30 ℃~80 ℃ storage), plug and play serial port integration, suitable for space limited scenarios such as portable devices, industrial controllers, and smart home panels.
Details
This 2.4 Inch IPS TFT display features 240×320 high-resolution and all-viewing angle clarity with UART serial interface for plug-and-play integration. Engineered for industrial reliability with -20℃~70℃ operation, 260cd/m² brightness, and resistive touch screen. Compact design (72×43×11.2mm) ideal for portable instruments, IoT devices, and control panels.
Details
This 2.8 Inch 240×320 Resolution Serial Port TFT Display delivers 240×320 sharp resolution with capacitive touch control and UART serial interface. Featuring 300cd/m² high brightness for outdoor visibility and industrial-grade reliability (-20℃~70℃ operation). Compact design (85×50×11.6mm) with optimized viewing angle at 12 o'clock, ideal for portable instruments, industrial controllers, and IoT devices.
Details
3.5 Inch 480×320 Resolution Serial TFT Display delivers 480×320 enhanced resolution with capacitive touch control and UART serial interface. Featuring 300cd/m² high brightness for outdoor visibility, industrial-grade reliability (-20℃~70℃ operation), and optimized 12 o'clock viewing angle. Compact design (100×55×11.5mm) with large active area (73.44×48.96mm), ideal for industrial HMI, portable devices, and interactive terminals.
Details
This industrial-grade 4.3 Inch 800×480 IPS TFT Serial Display delivers with full viewing angles and RS232 serial interface. Featuring 500cd/m² ultra-high brightness, 5-point capacitive touch, and 128Mbit onboard storage for local image caching. With extended temperature range (-20℃~70℃ operation), it's engineered for harsh environments in industrial HMI, medical equipment, and outdoor kiosks.
Details
This industrial-grade 4 Inch IPS Serial TFT LCD Display Module features 480×480 square HD resolution with UART serial interface and integrated 200MHz MCU. Boasting 450cd/m² brightness, 85% touch transmittance, and 1Gbit onboard storage for dynamic content. Engineered for extreme environments (-20℃~70℃ operation), it delivers plug-and-play HMI solutions for industrial control, medical devices, and IoT terminals.
Details
This 7Inch UART Display With 1024×600 HD delivers 1024×600 high-definition resolution with RS232/TTL interfaces and MODBUS protocol support. Featuring 150MHz SOC processor, 1Gbit onboard storage, and robust -20℃~70℃ operation range. Designed for critical healthcare applications with plug-and-play integration via SD card/remote serial upgrades, ensuring reliability in patient monitoring, diagnostic equipment, and medical kiosks.
Details
