Precision Display, Beyond Limits

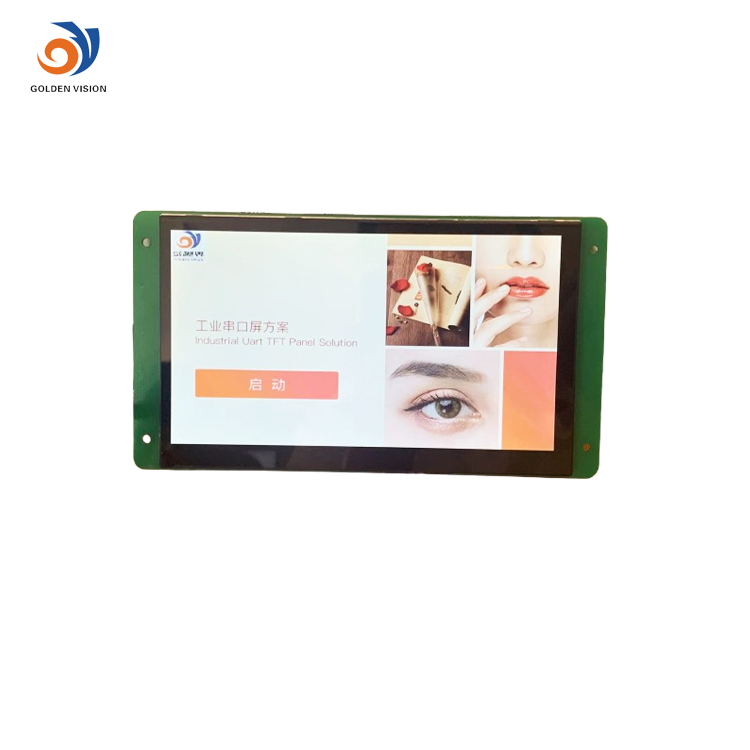

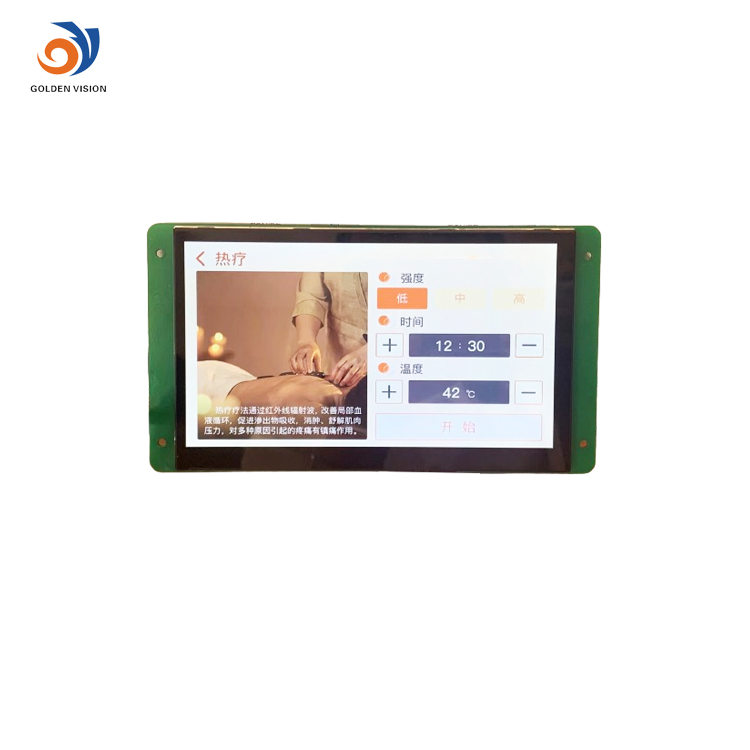

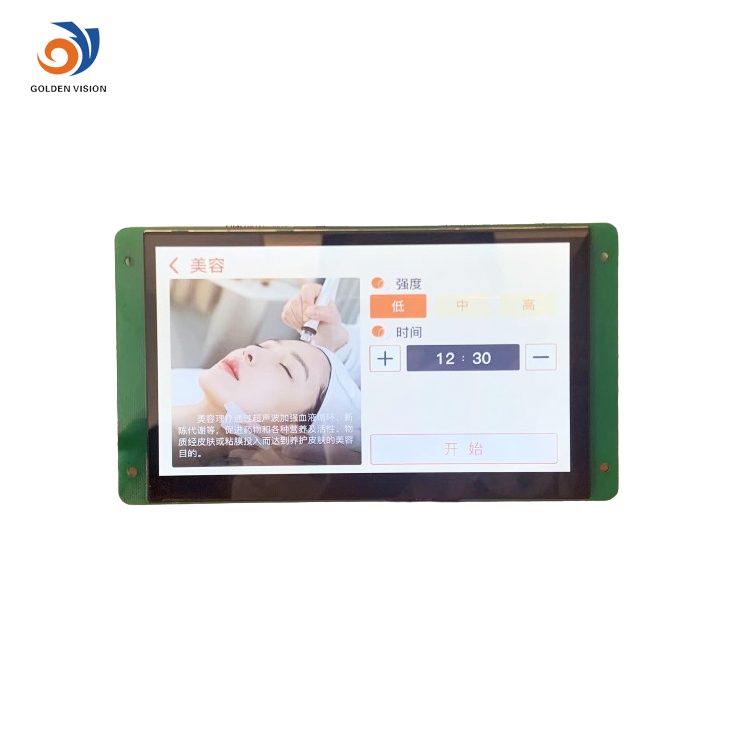

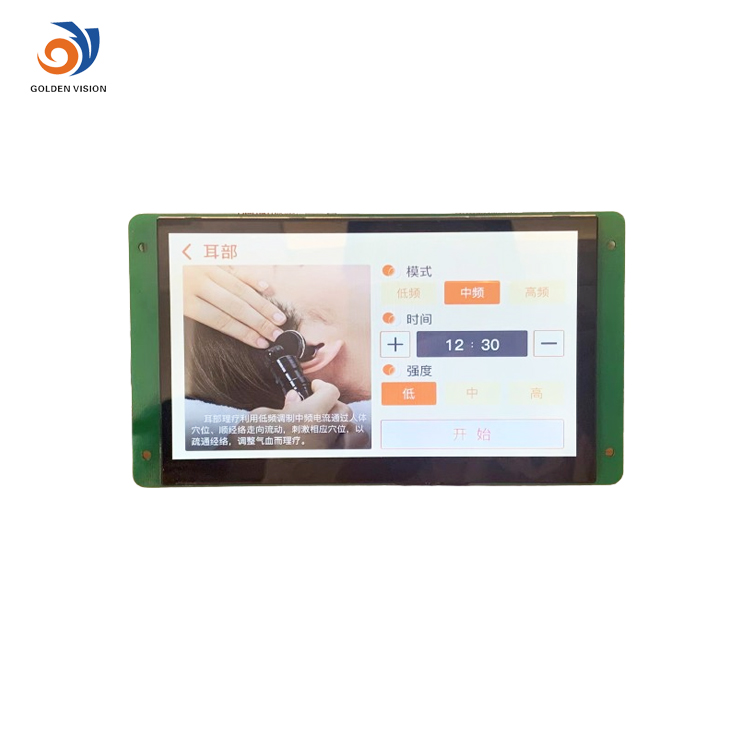

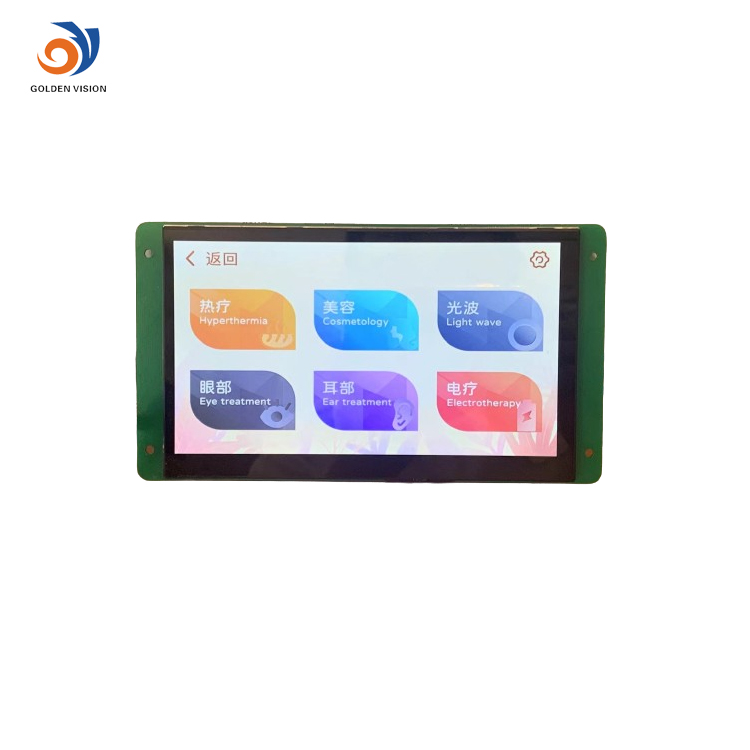

This 7Inch UART Display With 1024×600 HD delivers 1024×600 high-definition resolution with RS232/TTL interfaces and MODBUS protocol support. Featuring 150MHz SOC processor, 1Gbit onboard storage, and robust -20℃~70℃ operation range. Designed for critical healthcare applications with plug-and-play integration via SD card/remote serial upgrades, ensuring reliability in patient monitoring, diagnostic equipment, and medical kiosks.
Item No :
7Inch UART Display With 1024×600 HDOrder(MOQ) :
500 PiecesPayment :
TT TransferProduct Origin :
Anhui, ChinaSupplier Type :
ManufacturerLead Time :
About 20-25 days|
Product Families |
Medical Grade |
|
Core Processors |
150MHz SOC processor |
|
Operating System |
No operating system, power-on ready to run |
|
Protocol Type |
Upper computer can be configured to run the MODBUS protocol |
|
Size |
7.0 inch |
|
Resolution |
1024*600 |
|
Storage |
1Gbit |
|
Colour |
RGB565/888 |
|
Voltage |
5V |
|
Communication Mode |
RS232(default),TTL can be by way of jumping resistor |
|
Baud rate |
1200~921600bps,Typical baud rate:115200bps |
|
Picture local download |
SD Card/Serial Port |
|
Firmware Local/Remote Upgrade |
Insert SD card for local upgrade/support user's motherboard to upgrade screen firmware remotely by serial port. |
|
Picture Remote Upgrade |
Support users to remotely use their motherboard serial port to upgrade the screen related picture project, font, configuration file. |
|
Effective Display Area (AA) |
L*W=154.21mm*85.92mm |
|

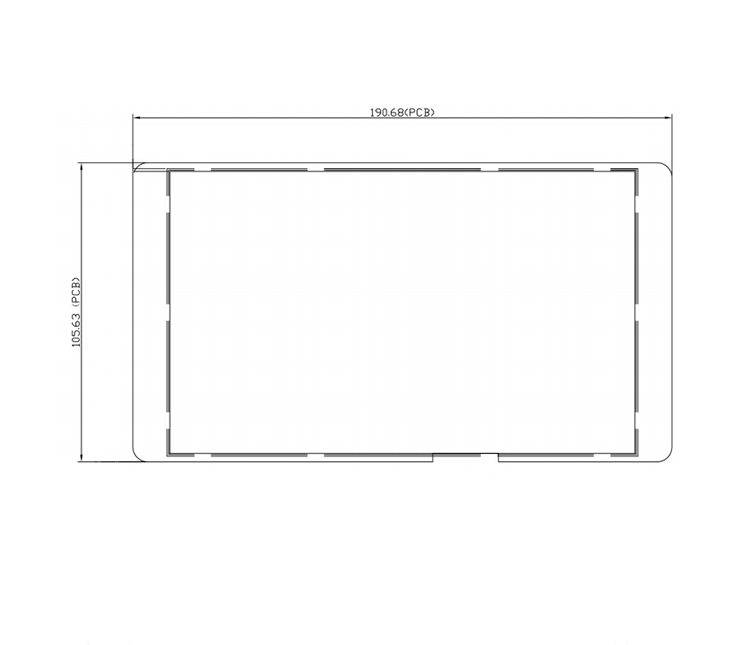

Dimension(L*W*H) |
190.68mm*105.63mm*16.6mm(MAX, including TP) |
|
Supporting software |
UI_Editor-II |
|
Operating Temperature |
-20~+70℃ |
|
Storage temperature |
-30~+80℃ |
Main Features and Benefits
1. Medical grade reliability
-20 ℃~70 ℃ wide temperature certification, passed medical equipment environmental testing
150MHz SOC processor, no operating system dependency, runs immediately upon power up
1 Gbit ultra large storage, supporting pre installation of medical icon library/multilingual font library
2. High definition medical imaging display
1024 × 600 high-definition resolution (167 PPI), 16:9 widescreen ratio
RGB556/888 True Color Display, Accurately Restoring Pathological Image Details
Effective display area of 154.21 × 85.92mm, maximizing information display
3. Intelligent medical integration
Dual communication interface: RS232 (default)+TTL (jumper switching)
MODBUS protocol support, directly connected to the main control system of medical equipment
Four dimensional upgrade channel: SD card/USB/serial port remote/firmware OTA
4. Zero maintenance design
Power consumption<1.5W (5V power supply), continuous operation for 7 × 24 hours
ESD protection (compliant with IEC 60601-1-2 medical EMC standard)
Anti chemical coating surface, resistant to repeated wiping with alcohol/disinfectant
Application Scenarios
1. Patient monitoring: Bedside monitor/central monitoring system, high-resolution multi parameter display on the same screen
2. Diagnostic imaging: portable ultrasound/endoscope display, true color restoration of tissue texture details
3. Testing equipment: blood analyzer/biochemical detector, MODBUS directly connected LAB system
4. Intelligent pharmacy: automatic dispensing machine/prescription terminal, stable operation in a -20 ℃ refrigerated environment
5. Mobile healthcare: Ambulance monitoring terminal/field hospital equipment, seismic design compliant with MIL-STD-810G
