Precision Display, Beyond Limits

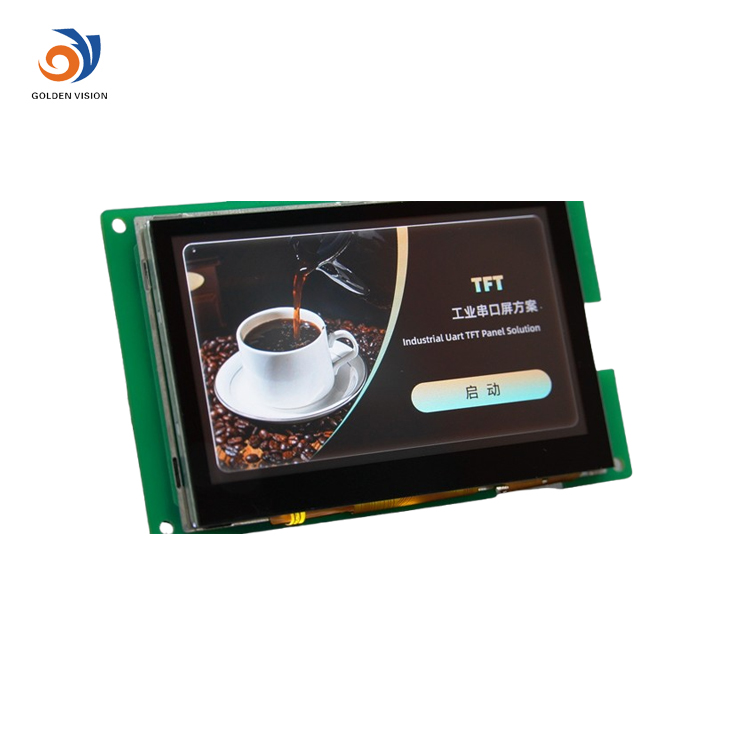

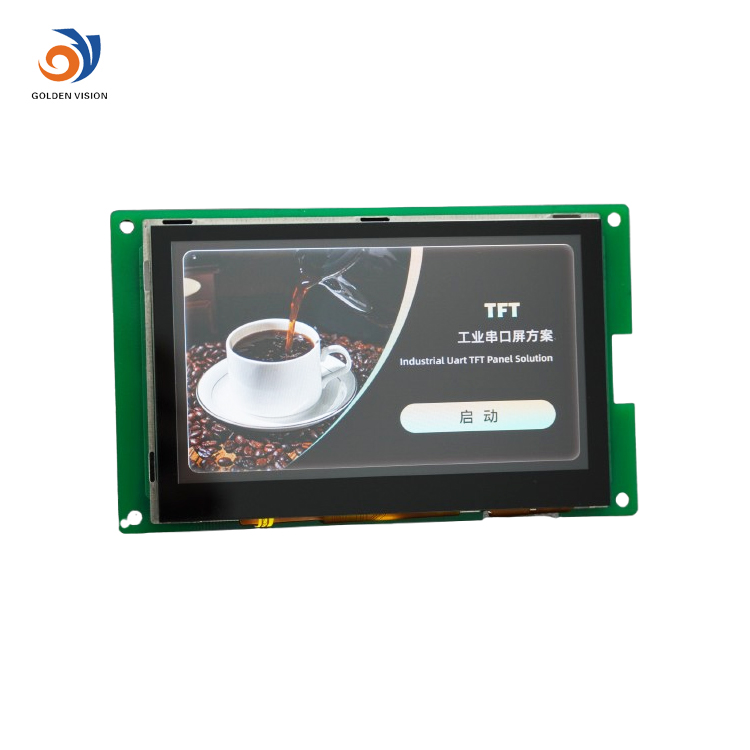

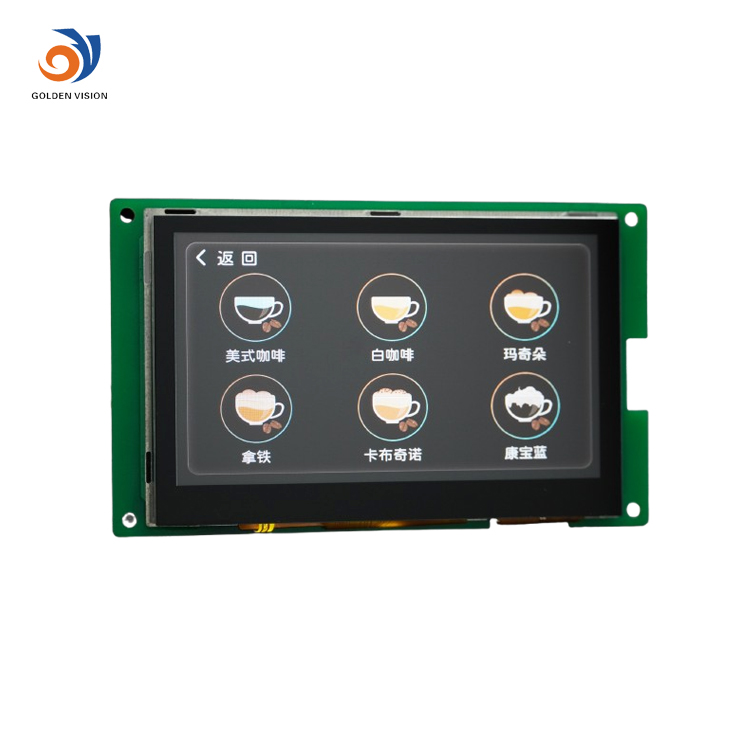

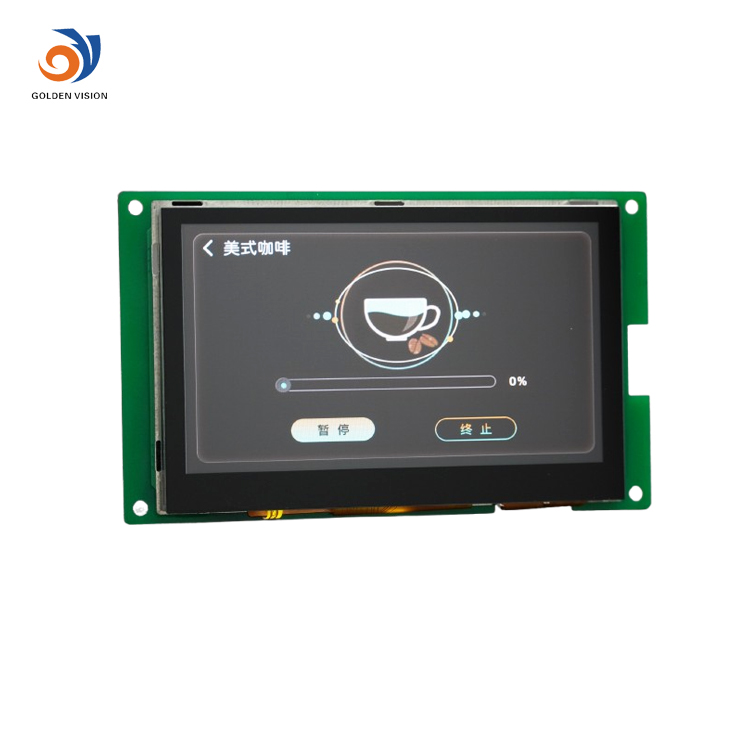

This industrial-grade 4.3 Inch 800×480 IPS TFT Serial Display delivers with full viewing angles and RS232 serial interface. Featuring 500cd/m² ultra-high brightness, 5-point capacitive touch, and 128Mbit onboard storage for local image caching. With extended temperature range (-20℃~70℃ operation), it's engineered for harsh environments in industrial HMI, medical equipment, and outdoor kiosks.
Item No :
4.3Inch 800×480 IPS TFT Serial DisplayOrder(MOQ) :
500 PiecesPayment :
TT TransferProduct Origin :
Anhui, ChinaSupplier Type :
ManufacturerLead Time :
About 20-25 days|
Model |
GVH043TGTP011-29750A-S |
|
Size |
4.3 inches |
|
Resolution |
800*480 |
|
Storage space |
128Mbit |
|
Color |
RGB565/888 |
|
Voltage |
5V |
|
Communication method |
RS232 |
|
Local image download |
SD card/serial port |
|
Screen effective display area (AA) |
Length*width = 95.04mm*53.85mm |
|
Product size (length * width * height) |
122.16mm*73.62mm*14.35mm |
|
Operating temperature |
-20～+70℃ |
|
Storage temperature |
-30～+80℃ |
|
Display type |
IPS LCD screen |
|
Backlight tube |
LED |
|
Brightness (cd/m²) |
500 |
|
Contrast |
1200 |
|
Viewing angle (L/R/U/D) |
full viewing angle |
|
Touch type |
Capacitive touch screen |
|
Capacitive touch points |
5 |
|
Capacitive screen transmittance |
85% |
Main Features and Benefits
1. Flagship level visual performance
800 × 480 high-definition resolution (216 PPI), IPS full view technology, 178 ° no dead angle visibility
500cd/m ² ultra-high brightness+1200:1 contrast ratio, clear visibility under strong direct light
RGB556/888 true color display, precise color reproduction (NTSC 72%+)
2. Professional touch experience
5-point capacitive touch, response speed<3ms, accuracy ± 0.5mm
85% high transmittance glass, with transparent and undamaged images
Support glove/wet hand operation (required in industrial scenarios)
3. Intelligent storage design
128Mbit onboard storage, supporting icon/font library preloading
Dual download channels: SD card+serial port, on-site burning without dismantling the device
Image refresh rate ≥ 30fps, smooth and dynamic display
4. Industrial grade robust architecture
Wide temperature range support (-20 ℃~70 ℃ working/-30 ℃~80 ℃ storage)
All metal shielding cover, anti electromagnetic interference (EMC compatible)
14.35mm reinforced structure, seismic grade 5G RMS
Application Scenarios
1. Industry 4.0: Intelligent Factory Console/AGV Dispatch Screen, 500cd/m ² Brightness Adapts to Strong Light in the Workshop
2. Outdoor equipment: Construction machinery instruments/charging station screens, -20 ℃ cold start, 80 ℃ high temperature stability
3. Medical imaging: portable ultrasonic instrument/endoscopic display, high transparency, accurate presentation of tissue details
4. Smart transportation: Vehicle dispatch terminal/ship navigation, resistant to salt spray corrosion (optional IP65)
5. Security monitoring: access control panel/fire control host, 7 × 24 hours continuous operation reliability
Why choose Anhui Golden Vision Optoelectronics OEM LCD panel supplier?
1. Deep foundation and strength guarantee: We have been deeply involved in the LCD display field for 30 years and have accumulated rich experience in production, manufacturing, and sales. This not only means mature and stable processes, but also represents a profound understanding of market demand and the ability to continuously innovate.
2. Vertical integration and controllable quality: The core advantage of Golden Vision lies in its ability to self produce throughout the entire industry chain. We have achieved independent production of everything from the core LCD display screen to the critical PCBA (printed circuit board components). This deep vertical integration ensures full quality control from the source to the finished product, effectively ensuring product consistency and reliability
Significantly shorten delivery time and enhance supply chain resilience.
3. Business team, one-stop service: We have a strong team of professional engineers with full technical capabilities covering the entire process from low-level hardware design to high-level software development. Whether it's professional software and hardware engineers solving technical problems, UI design teams creating intuitive and easy-to-use user interfaces, or structural engineering teams ensuring product durability and perfect compatibility, JinShiShi can provide you with comprehensive, one-stop technical support and solutions from concept to mass production.
Anhui Golden Vision Optoelectronics, with 30 years of craftsmanship, full industry chain self-produced strength, and top cross disciplinary engineering team, is committed to becoming your most trusted display technology partner, helping your products stand out in the fierce market competition!
