Precision Display, Beyond Limits

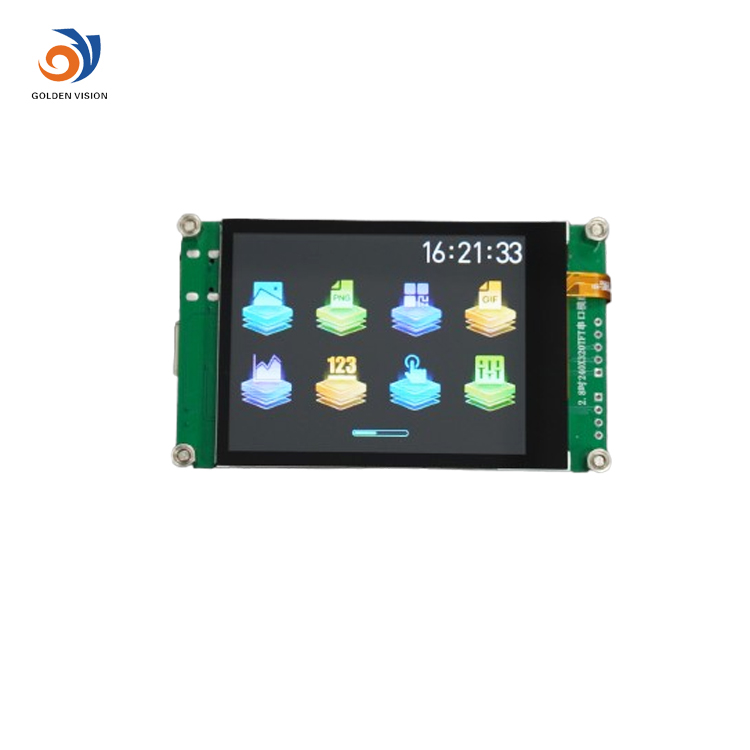

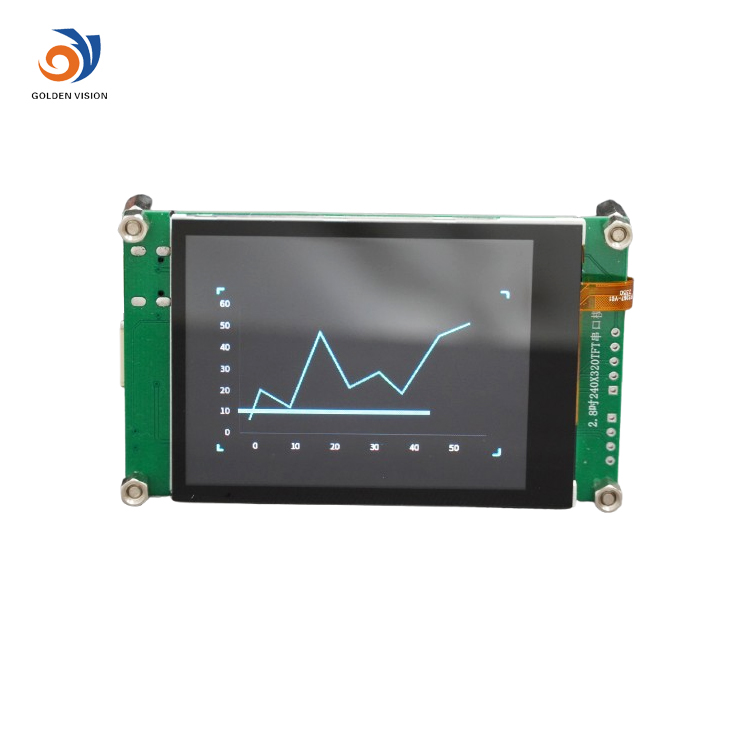

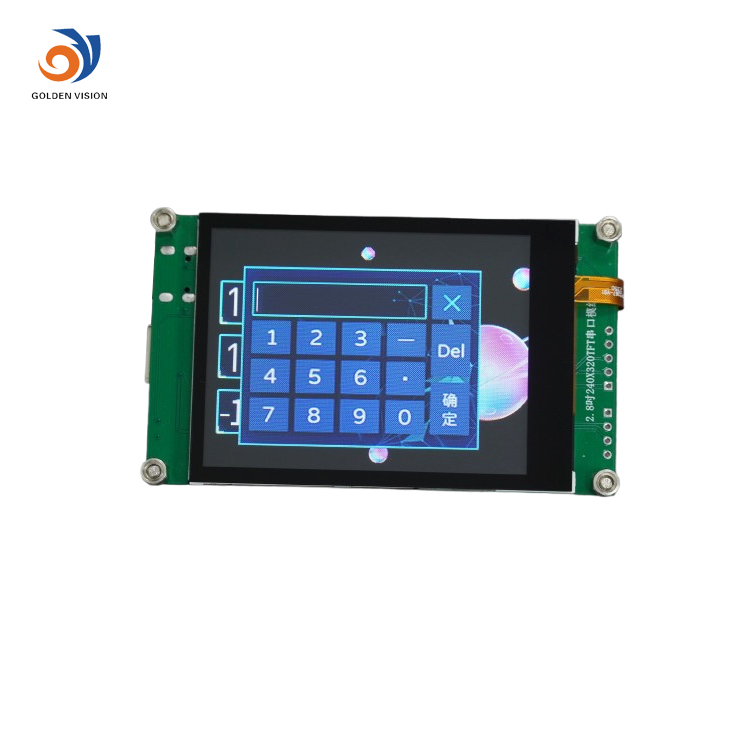

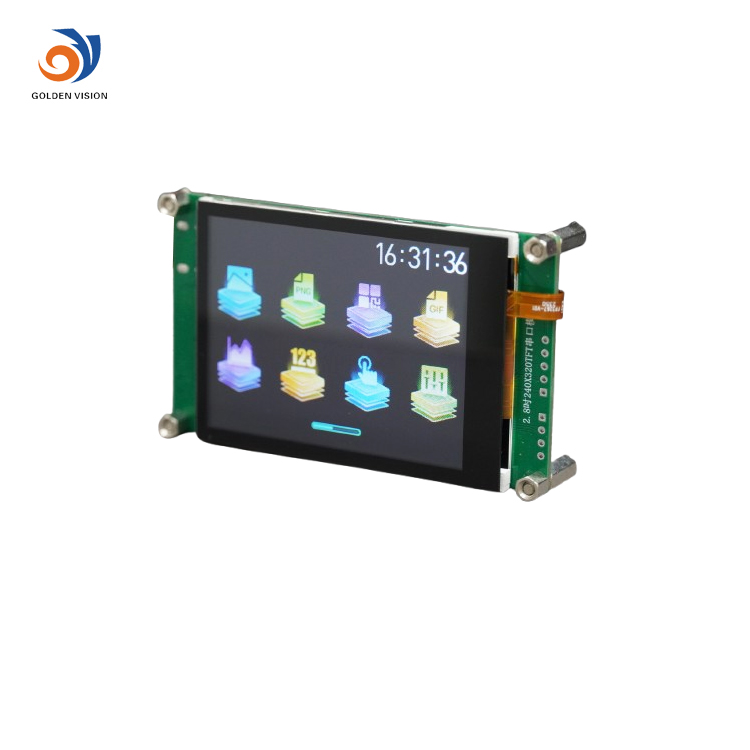

This 2.8 Inch 240×320 Resolution Serial Port TFT Display delivers 240×320 sharp resolution with capacitive touch control and UART serial interface. Featuring 300cd/m² high brightness for outdoor visibility and industrial-grade reliability (-20℃~70℃ operation). Compact design (85×50×11.6mm) with optimized viewing angle at 12 o'clock, ideal for portable instruments, industrial controllers, and IoT devices.
Item No :
2.8Inch Serial Port TFT DisplayOrder(MOQ) :
500 PiecesPayment :
TT TransferProduct Origin :
Anhui, ChinaSupplier Type :
ManufacturerLead Time :
About 20-25 days|
Model |
2.8 Inch serial port screen |
|
Resolution |
240*320 |
|
Voltage |
5V |
|
Communication Method |
UART serial communication |
|
Screen Effective Display Area (AA) |
57.6mm*43.2mm |
|

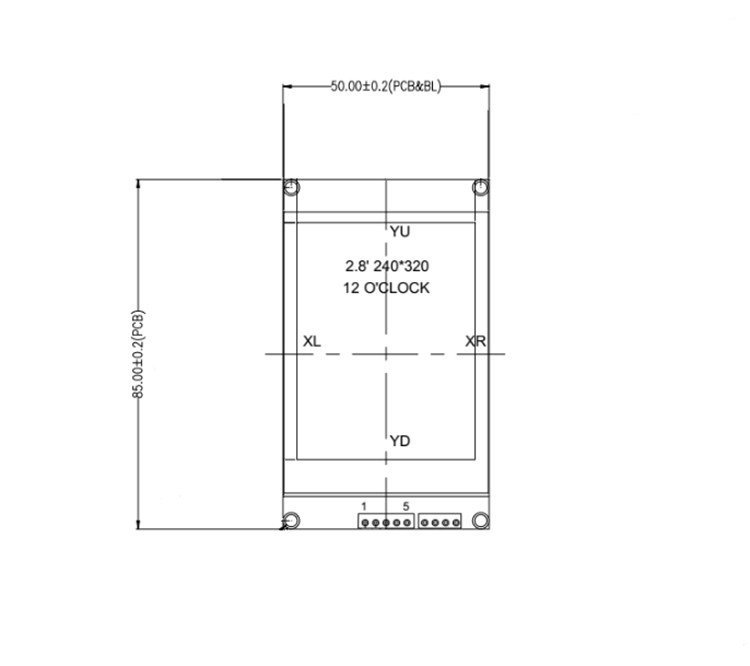

Product Dimensions (length * width * height) |
85mm*50mm*11.6mm |
|
Operation Temperature |
-20～+70℃ |
|
Storage Temperature |
-30～+80℃ |
|
Display Type |
TN LCD screen |
|
Backlight Tube |
LED |
|
Brightness (cd/m ²) |
300 |
|
Perspective (L/R/U/D) |
12 o’clock |
|
Touch Type |
Capacitive Touch Screen |
Main Features and Benefits
1. Excellent visual performance
240 × 320 high-definition resolution (PPI 142), displaying delicate and particle free images
300cd/m ² ultra-high brightness, 60% improvement in visibility in strong light environments
The best viewing angle in the 12 o'clock direction (optimized with TN screen technology), with clear presentation of key information
2. Sensitive touch experience
Capacitive touch screen, supporting 10 point touch (according to industry standards)
Quick response (<5ms), precise coordinate recognition
Surface hardening treatment (3H hardness), scratch resistant and wear-resistant
3. Minimalist industrial integration
UART serial communication, plug and play, driver free development
5V single voltage power supply, compatible with various embedded systems
57.6 × 43.2mm large effective display area, screen to body ratio>85%
4. Durability in harsh environments
Wide temperature range support (-20 ℃~70 ℃ working/-30 ℃~80 ℃ storage)
All metal backlight bracket, resistant to impact and vibration
11.6mm ultra-thin with touch assembly, saving space
Application Scenarios
1. Industrial control: PLC handheld terminal/instrument panel, capacitive touch support for wet hand operation
2. Outdoor equipment: portable GPS/geological exploration instrument, 300cd/m ² brightness suitable for strong light environment
3. Smart Home: Smart door lock panel/central control screen, 5V voltage compatible with home circuit design
4. In car electronics: Rear mounted machine/OBD diagnostic screen, wide temperature support for extreme cabin environments
5. Retail terminal: handheld POS machine/inventory management device, capacitive touch supports quick sliding operation
