Precision Display, Beyond Limits

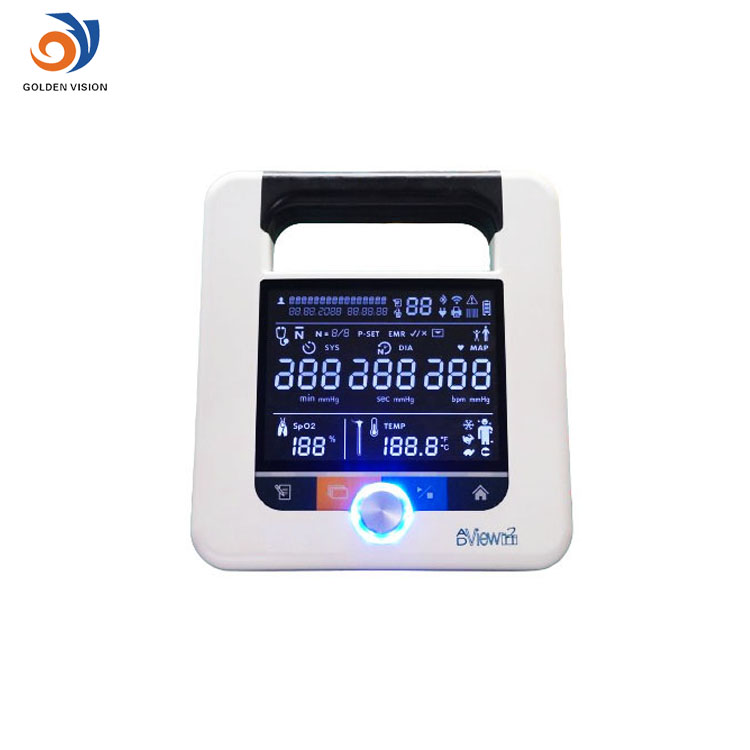

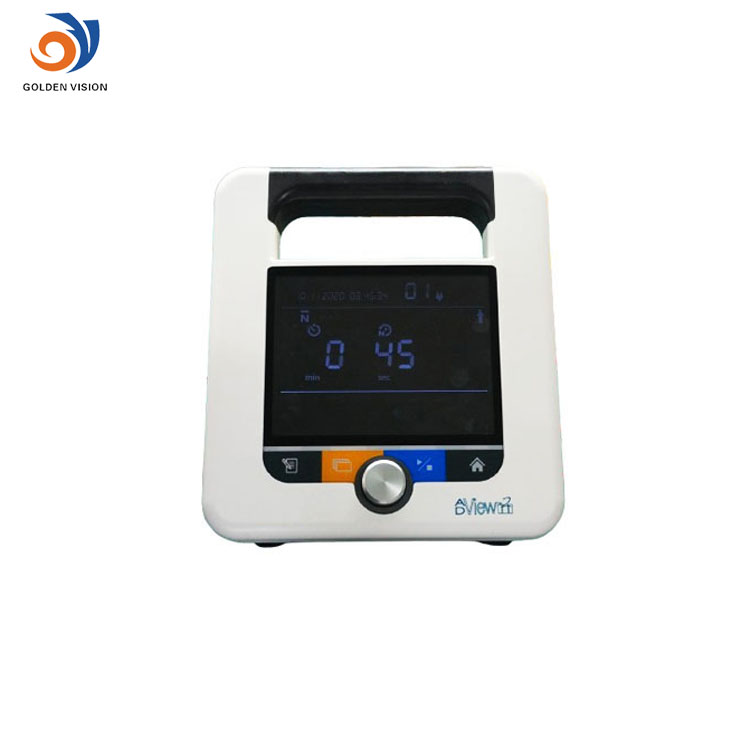

Precision-engineered for medical diagnostics, this medical VA display module delivers high-contrast negative display with 121×94mm active area. Featuring 12 o'clock viewing angle, FPC connectivity, and -10℃~60℃ operational stability, it meets critical requirements for blood analyzers, biosensors, and point-of-care testing devices.
Item No :
Medical VA Display Module 121×94mmOrder(MOQ) :
500 PiecesPayment :
TT TransferProduct Origin :
Anhui, ChinaSupplier Type :
ManufacturerLead Time :
About 20-25 days
|
Main Parameters |
|
|
Module number |
GVHLCMGFV011-574A-21 |
|
Application |
Medical Testers |
|
Type |
COG |
|
LCD Type |
VA |
|
Active Area |
121*94 |
|
View angle |
12:00 |
|
Electrical Interface |
FPC |
|

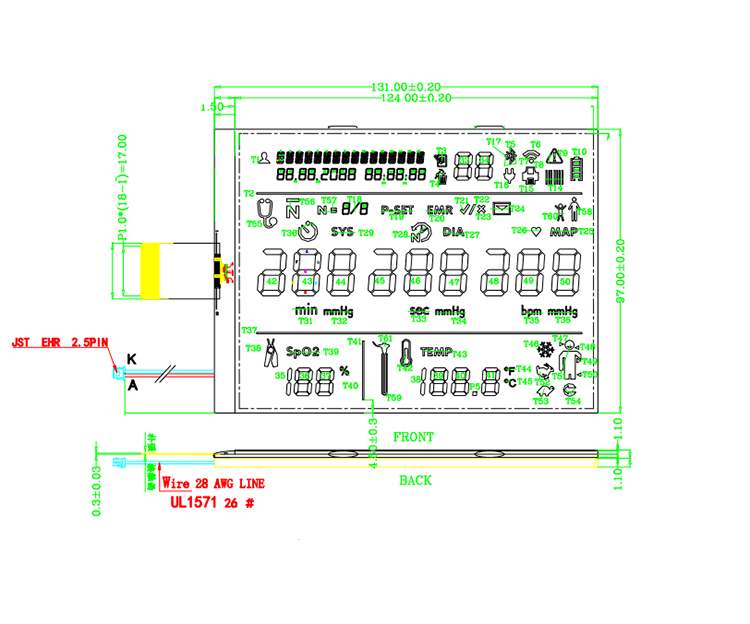

Outline dimension |
124*97±0.2 |
|
Backlight |
White |
|
Display mode |
NEGATIVE |
|
Operate temperature |
-10℃~ +60℃ |
|
Storage temperature |
-20℃~ +70℃ |
|
Backlight lifetime |
one year |
|
Driving method |
1/4 Bias , 1/9 Duty |
Main features and Benefits
Clinical-Grade Readability
Negative VA mode achieves(medical VA display module) >500:1 contrast ratio for clear data/graph visualization under surgical lighting.
Rugged Medical Reliability
Operates at -10℃~60℃ with -20℃~70℃ storage range, ensuring performance in lab/ambulance environments.
Ergonomic Vertical Viewing
12 o'clock viewing angle optimized for standing operators in clinical settings.
Seamless Medical Integration
50-pin FPC interface enables solder-free assembly on medical-grade PCBs (compatible with SMT processes).
Long-Lifetime Backlight
Medical-optimized white LED with 1-year guaranteed lifespan (8,000+ hours continuous operation).
Recommend Products
Application Scenarios
✅ Blood Chemistry Analyzers: Test result displays, parameter readouts
✅ Portable Biosensors: Glucose/Cholesterol monitor interfaces
✅ PCR Systems: DNA amplification curve visualization
✅ Urinalysis Devices: Chemical strip analysis indicators
✅ Vital Signs Monitors: Compact displays for ER/ICU equipment
1. Deep foundation and strength guarantee: We have been deeply involved in the medical VA display module field for 30 years and have accumulated rich experience in production, manufacturing, and sales. This not only means mature and stable processes, but also represents a profound understanding of market demand and the ability to continuously innovate.
2. Vertical integration and controllable quality: The core advantage of Golden Vision lies in its ability to self produce throughout the entire industry chain. We have achieved independent production of everything from the core LCD display screen to the critical PCBA (printed circuit board components). This deep vertical integration ensures full quality control from the source to the finished product, effectively ensuring product consistency and reliability
Significantly shorten delivery time and enhance supply chain resilience.
3. Business team, one-stop service: We have a strong team of professional engineers with full technical capabilities covering the entire process from low-level hardware design to high-level software development. Whether it's professional software and hardware engineers solving technical problems, UI design teams creating intuitive and easy-to-use user interfaces, or structural engineering teams ensuring product durability and perfect compatibility, JinShiShi can provide you with comprehensive, one-stop technical support and solutions from concept to mass production.
Anhui Golden Vision Optoelectronics, with 30 years of craftsmanship, full industry chain self-produced strength, and top cross disciplinary engineering team, is committed to becoming your most trusted display technology partner, helping your products stand out in the fierce market competition!
