Precision Display, Beyond Limits

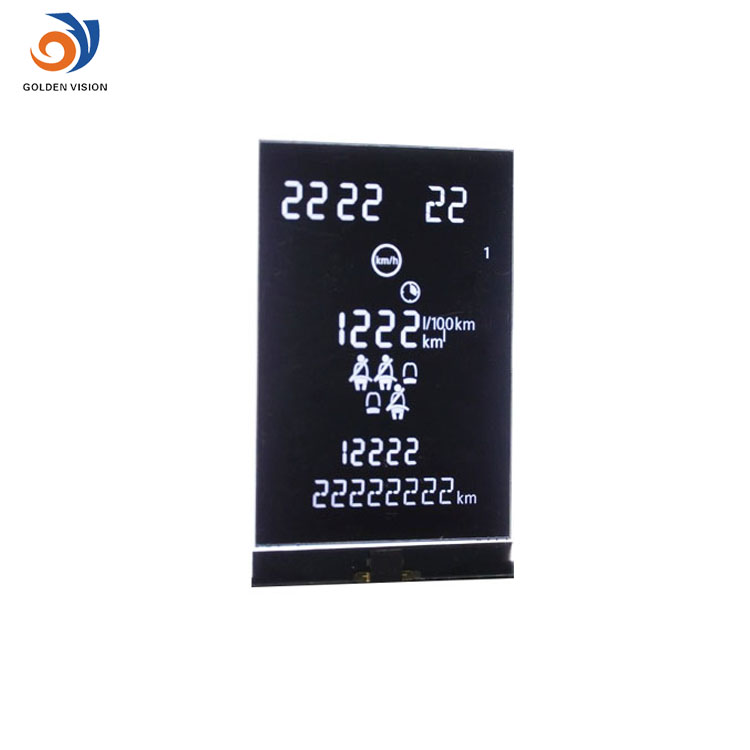

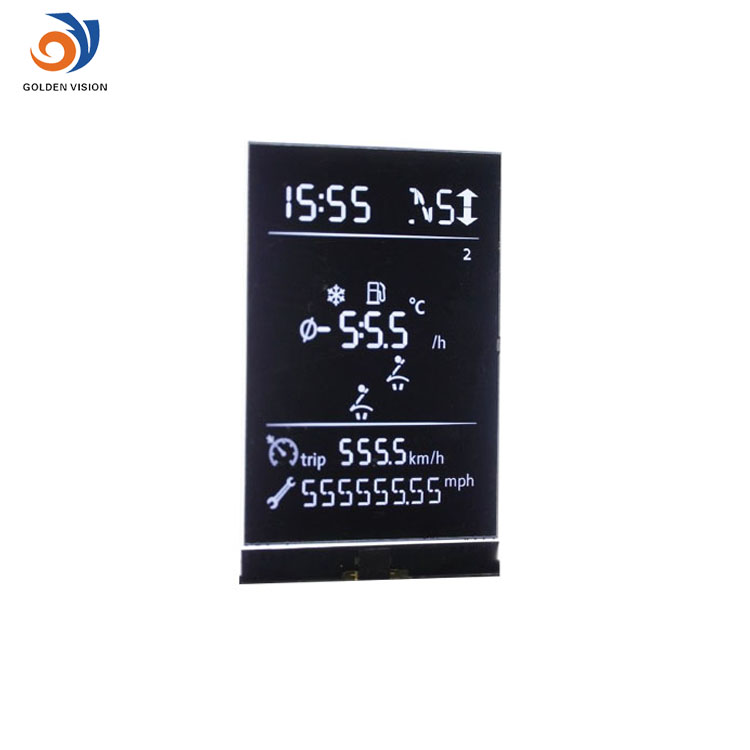

Precision-engineered for automotive dashboards, this display module delivers high-contrast 50.27×74mm negative display with 6 o'clock viewing angle. Featuring FPC connectivity, -35℃~85℃ operational range, and transmissive backlighting, it meets rigorous requirements for speedometers, fuel gauges, and warning systems.
Item No :
Automotive Instrument Cluster Display ModuleOrder(MOQ) :
500 PiecesPayment :
TT TransferProduct Origin :
Anhui, ChinaSupplier Type :
ManufacturerLead Time :
About 20-25 days|
Main Parameters |
|
|
Module number |
GVH1001FFVL011-323A-29 |
|
Application |
Automobile Instrument |
|
Type |
COG |
|
LCD Type |
VA |
|
Active Area |
50.27*74 |
|
View angle |
6:00 |
|
Electrical Interface |
FPC |
|
Outline dimension |
58.10*88.20±0.2 |
|
Backlight |
TRANSMISSIVE |
|
Display mode |
Negative |
|
Operate temperature |
-35℃~ +85℃ |
|
Storage temperature |
-40℃~ +90℃ |
|
Backlight lifetime |
One year |
Main features and benefits
Extreme Environment Reliability（display module）
-35℃~85℃ operational range exceeds AEC-Q100 Grade 2 standards for all-climate performance
Sunlight Readability Optimized
Negative VA display with 6 o'clock viewing angle achieves >1000:1 contrast in direct sunlight
Vibration-Resistant Construction
COG technology eliminates connectors, validated to 20G vibration
Space-Efficient Integration
58.10×88.20mm compact outline fits modern digital instrument clusters
Automotive Longevity
15,000-hour backlight lifespan with humidity-resistant sealing
Recommend Products
Application scenarios
✅ Digital Speedometers（display module）: Real-time speed/RPM displays
✅ Hybrid/EV Clusters: Battery charge state indicators
✅ Warning Systems: Check engine/TPMS alert panels
✅ Navigation Displays: Turn-by-turn direction integration
✅ Advanced Driver Assistance: Lane departure/FCW indicators
1. Deep foundation and strength guarantee: We have been deeply involved in the display module field for 30 years and have accumulated rich experience in production, manufacturing, and sales. This not only means mature and stable processes, but also represents a profound understanding of market demand and the ability to continuously innovate.
2. Vertical integration and controllable quality: The core advantage of Golden Vision lies in its ability to self produce throughout the entire industry chain. We have achieved independent production of everything from the core LCD display screen to the critical PCBA (printed circuit board components). This deep vertical integration ensures full quality control from the source to the finished product, effectively ensuring product consistency and reliability
Significantly shorten delivery time and enhance supply chain resilience.
3. Business team, one-stop service: We have a strong team of professional engineers with full technical capabilities covering the entire process from low-level hardware design to high-level software development. Whether it's professional software and hardware engineers solving technical problems, UI design teams creating intuitive and easy-to-use user interfaces, or structural engineering teams ensuring product durability and perfect compatibility, JinShiShi can provide you with comprehensive, one-stop technical support and solutions from concept to mass production.
Anhui Golden Vision Optoelectronics, with 30 years of craftsmanship, full industry chain self-produced strength, and top cross disciplinary engineering team, is committed to becoming your most trusted display technology partner, helping your products stand out in the fierce market competition!
