Precision Display, Beyond Limits

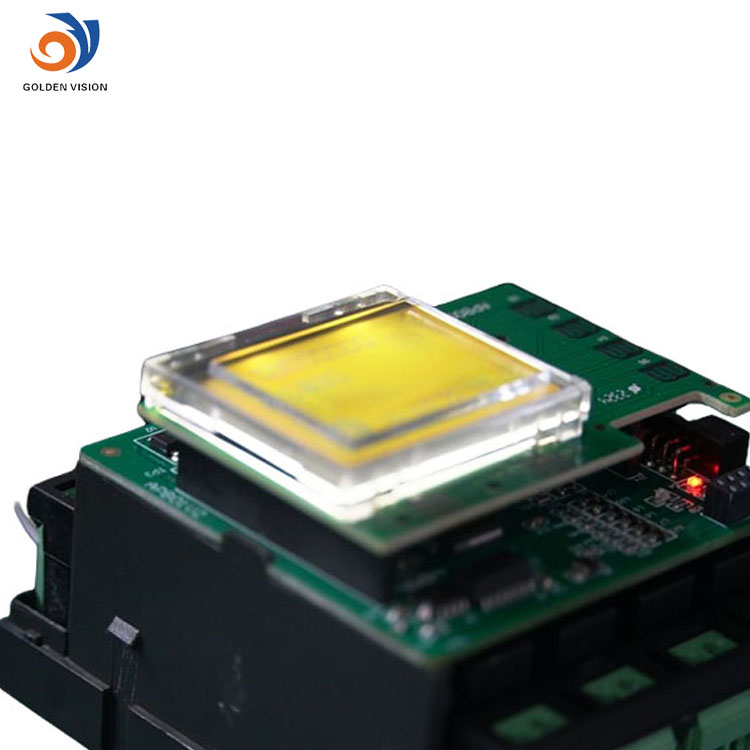

Designed for secondary instrument cluster displays, this lcd display module STN-Yellow Green LCD delivers crisp 35.5×25.5mm positive display with 6 o'clock viewing angle. Featuring rugged PIN interface, -30℃~80℃ operation, and ultra-low 3.0V power consumption, it reliably shows odometer/trip data in all driving conditions.
Item No :
Automotive Sub-LCD Display ModuleOrder(MOQ) :
500 PiecesPayment :
TT TransferProduct Origin :
Anhui, ChinaSupplier Type :
ManufacturerLead Time :
About 20-25 days|
Main Parameters |
|
|
Module number |
GVH10864GPSL011-380A-29 |
|
Application |
Instrument |
|
Type |
COG |
|
LCD Type |
STN(Y-G) |
|
Active Area |
35.5*25.5 |
|
View angle |
6:00 |
|
Electrical Interface |
PIN |
|
Outline dimension |
38.5*28.5±0.2 |
|
Backlight |
White |
|
Display mode |
Positive |
|
Operate temperature |
-30℃~ +80℃ |
|
Storage temperature |
-40℃~ +90℃ |
|
Power Supply Voltage |
VDD=3.0V, VLCD=8.9V(Typ), VLED=3V(typ)@If=30mA |
|
Backlight lifetime |
One year |
|
Driving method |
1/9 Bias , 1/65 Duty |
Main features and benefits
Space-Optimized Design
38.5×28.5mm ultra-compact outline fits constrained dashboard areas(lcd display module)
All-Weather Reliability
-30℃~80℃ operational range exceeds AEC-Q100 Grade 3 requirements
Low-Power Efficiency
3.0V operation (VLED=3V@30mA) reduces battery drain in EVs/HEVs
Vibration-Resistant Construction
Direct PIN soldering eliminates connector failure points
Legacy System Compatibility
STN-YG technology provides backward compatibility with existing optics
Recommend Products
Application scenarios
✅ Odometer/Trip Display(lcd display module): Mileage counters, range estimators
✅ Gear Position Indicators: PRNDL status for automatic transmissions
✅ Warning Light Panels: Supplemental icon displays (ABS/TPMS)
✅ HVAC Status Modules: Temperature/fan speed readouts
✅ Hybrid System Indicators: EV mode/regeneration status
1. Deep foundation and strength guarantee: We have been deeply involved in lcd display module field for 30 years and have accumulated rich experience in production, manufacturing, and sales. This not only means mature and stable processes, but also represents a profound understanding of market demand and the ability to continuously innovate.
2. Vertical integration and controllable quality: The core advantage of Golden Vision lies in its ability to self produce throughout the entire industry chain. We have achieved independent production of everything from the core LCD display screen to the critical PCBA (printed circuit board components). This deep vertical integration ensures full quality control from the source to the finished product, effectively ensuring product consistency and reliability
Significantly shorten delivery time and enhance supply chain resilience.
3. Business team, one-stop service: We have a strong team of professional engineers with full technical capabilities covering the entire process from low-level hardware design to high-level software development. Whether it's professional software and hardware engineers solving technical problems, UI design teams creating intuitive and easy-to-use user interfaces, or structural engineering teams ensuring product durability and perfect compatibility, JinShiShi can provide you with comprehensive, one-stop technical support and solutions from concept to mass production.
Anhui Golden Vision Optoelectronics, with 30 years of craftsmanship, full industry chain self-produced strength, and top cross disciplinary engineering team, is committed to becoming your most trusted display technology partner, helping your products stand out in the fierce market competition!
